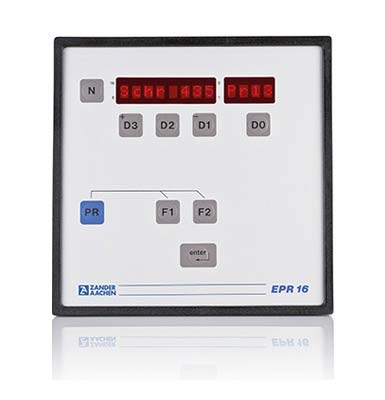

EPR16BT

Features

  • Absolute shaft encoder up to 500 r.p.m
  • Automatic dead time/delay-time correction
  • Program optimizing during operation
  • Easy programming via integrated keyboard
  • No programming unit required
  • 32 programs
  • Realtime operating system for highest speed
  • Operator terminal and PLC in one unit
EPR16BT

EPR16BT

Applications

Packaging machines,
cutting facilities, gluing stations,
rotary indexing tables

Supply voltage

AC 230 V / AC 115 V

Input rotary encoder

10 Bit binary; 360 steps/U

Input frequency

Max. 3500 Hz, max. 500 U/min

Number outputs

16

Switching capability, semiconductor

DC 10-60 V; 100 mA

Display

12-digit LED-dot matrix, red

Number of internal programmes

32

Keys (degree of protection)

9 function keys (IP65)

Serial interface

V24, RS232 level, 300-9600 Baud

Width x height x depth

144 x 144 x 130 mm
switch panel mounting

Order No.

585415 / 585416

Order No. plug-in card 16 relay outputs AC 250 V, 3 A

585450
