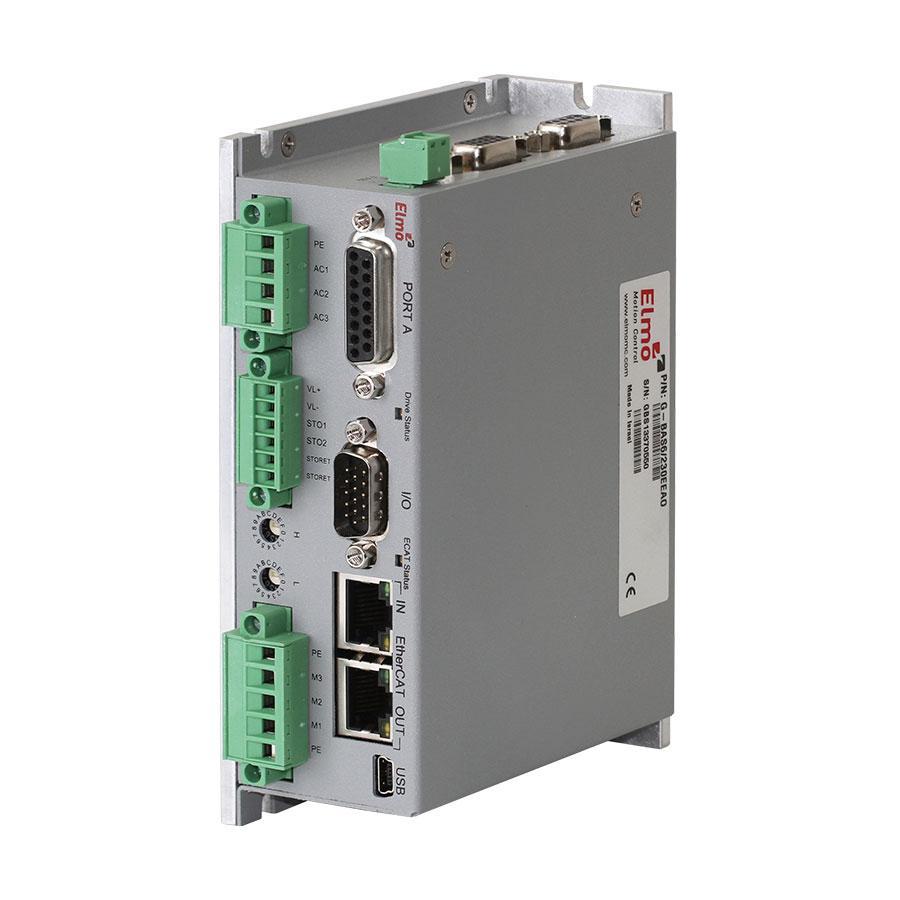

Gold Bassoon Servo Drive Highlights:
- "Direct-to-mains" networking servo drive
- Rectifies AC input voltage of up to 3x270VAC
- Gold Line core motion control technology
- High Regeneration braking capability
- Ultra-compact, highest power density
- Highly efficient ≈98%
- High servo performance, wide current, velocity, position bandwidth
- Continuous output current: 3A, 6A,10A.
- Extra ordinary current loop dynamic range of 2000:1
- Real-time deterministic network communications: EtherCAT, CANopen
- Host communication: USB, Ethernet
- Supports a wide variety of feedback sensors in single, dual and gantry loop configurations
- Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance
- Vector control sinusoidal commutation
- Easy to set up and tune with Elmo Application Studio software tools
- STO, Safe Torque Off
- Complies to safety, Environmental and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2
Electrical Specifications
|
Feature
|
Units
|
3/230
|
6/230
|
10/230
|
|
Minimum supply voltage
|
VAC
DC-500 Hz
|
1 x 50 or 3 x 50
|
|
Nominal supply voltage
|
VAC
DC-500 Hz
|
1 x 230 or 3 x 230
|
|
Maximum supply voltage
|
VAC
DC-500 Hz
|
1 x 270 or 3 x 270
|
|
Maximum continuous power output
|
kW
|
0.95
|
1.9
|
3.25
|
|
Efficiency at rated power (at nominal conditions)
|
%
|
> 98
|
|
Auxiliary supply voltage
|
VDC
|
Without Fan: 18 to 30 VDC
With Fan: 24VDC± 10%
|
|
Auxiliary power supply
|
VA
|
Without Fan: 6
With Fan: 6 (Control) + 10 (for fan) = 16
|
|
Continuous current limit (Ic) Amplitude
sinusoidal/DC trapezoidal commutation
|
A
|
3
|
6
|
10
|
|
Continuous RMS sinusoidal commutation current limit (Ic)
|
A
|
2.1
|
4.2
|
7.1
|
|
Peak Current
|
A
|
6
|
12
|
20
|
|
Built In Shunt (peak Power)
|
W
|
3000
|
