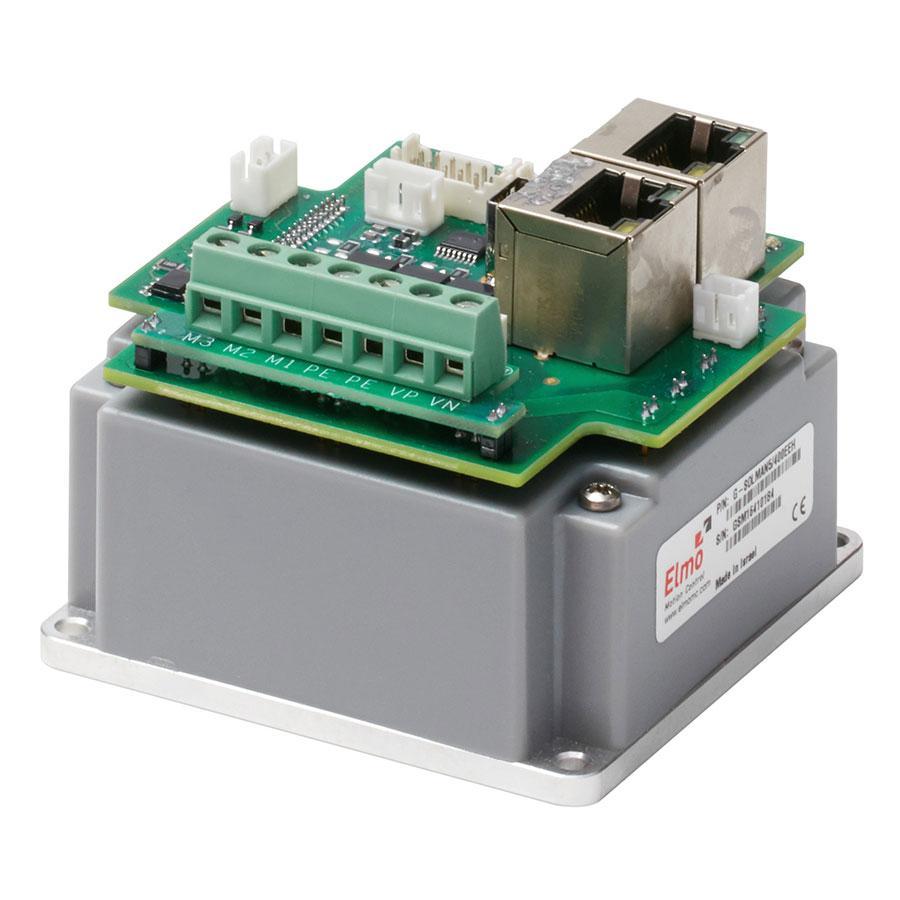

Gold Solo Mandolin Highlights:
- Gold Line core motion control technology
- Ultra-compact, highest power density
- Highly efficient, high bandwidth performance
- Multiple communication options: EtherCAT, CANopen, USB, Ethernet, RS-232
- Supports a wide variety of feedback sensors
- Advanced filtering and gain scheduling options for enhanced dynamic performance
- Vector control sinusoidal commutation
Electrical Specifications
|
Feature
|
Units
|
5/400
|
7/400
|
|
Minimum supply voltage
|
VDC
|
100
|
|
Nominal supply voltage
|
VDC
|
325
|
|
Maximum supply voltage
|
VDC
|
400
|
|
Maximum continuous power output
|
W
|
1600
|
2300
|
|
Efficiency at rated power (at nominal conditions)
|
%
|
> 98
|
|
Control backup supply voltage option
|
VDC
|
18 to 40 VDC
|
|
Control backup supply
|
VA
|
≤5 VA without external loading
≤8 VA with full external loading
|
|
Continuous current limit (Ic)
Amplitude sinusoidal/DC trapezoidal commutation
|
A
|
5
|
7
|
|
Sinusoidal continuous RMS current limit (Ic)
|
A
|
3.55
|
4.95
|
|
Peak current limit
|
A
|
2 x Ic
|
