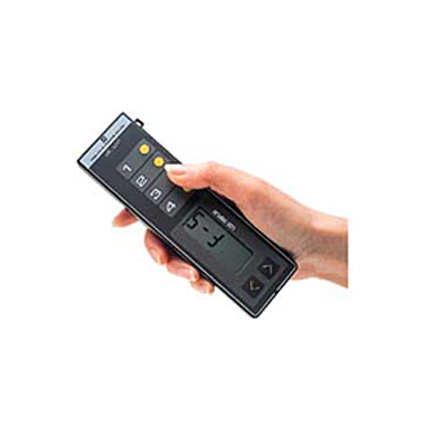

BRC-G Optical Remote Controller
Stable operation and high reliability against disturbance noise
This is a remote controller with high reliability. Operation and handling are improved.
4-point type and 12-point type are lined up and special type is also available.
BRC-G Optical Remote Controller
Specifications
|
Model No.
|
BRC-G24T
|
BRC-G44T
|
|
Kind
|
4-point transmitter
|
|
Power source
|
Alkaline cell 4 pcs
Battery life : approx.9 hours under continuous use
Power switch and automatic power-off function are provided(It will be off if no key input for 30sec.)
|
|
Projecting element
|
Infra-red LED
|
|
Directional angle
|
Full angle 30°
|
|
Transmission distance
|
10m
|
20m
|
|
Transmission point
|
4 points
|
|
Transmission method
|
Transmitted by transmission key(1 to 4), Double key-in is also available by changeover switch
|
|
Transmission check
|
Electronic buzzer(Ringing during transmitting)
|
|
Case
|
ABS resin(Handling part : Polyester film)
|
|
Weight
|
Approx. 120g
|
|
Model No.
|
BRC-G2BT
|
BRC-G4BT
|
|
Kind
|
12-point transmitter
|
|
Power source
|
Alkaline cell 4 pcs
Battery life : approx.9 hours under continuous use
Power switch and automatic power-off function are provided(It will be off if no key input for 30sec.)
|
|
Projecting element
|
Infra-red LED
|
|
Directional angle
|
Full angle 30°
|
|
Transmission distance
|
10m
|
20m
|
|
Transmission point
|
12 points
|
|
Transmission method
|
Transmitted by transmission key(1 to 12), Double key-in is also available by changeover switch
|
|
Transmission check
|
LED(Lighting during transmitting)
|
|
Case
|
ABS resin(Handling part : Polyester film)
|
|
Weight
|
Approx. 200g
|
|
Model No.
|
BRC-G2AR
|
BRC-G2BR
|
BRC-H2AR
|
BRC-H2BR
|
|
Kinds
|
4 points
|
12 points
|
4 points
|
12 points
|
|
HEAD-ON
|
FRONT-ON
|
|
Power source
|
24VDC(±20%, ripple 10% or less)
|
|
Reception element
|
Photo-diode
|
|
Directional angle
|
50°for vertical and 90°for horizontal(Full angle)
|
|
Reception method
|
FSK modulation, output is effective when reverse code corresponds
|
|
F number registration
|
Set by transmitter
|
|
Output
|
Data output : 4 pcs(BRC-G2AR, BRC-H2AR), 12 pcs(BRC-G2BR, BRC-H2BR), strobe : 1 pcs, photo-coupler isolation, open-collector output(Max.35V, 50mA, residual voltage Max. 1.5V)
Note) It executes only when registered F No. code would coincide receiving F No.code.
|
|
Connection
|
Cable with connector(2m long)
|
|
Ambient illuminance
|
10,000lx or less(Fluorescent lamp, mercury lamp)
|
|
Ambient temperature
|
-10 degrees C to +50 degrees C
|
|
Ambient humidity
|
45 to 85%RH
|
|
Protective structure
|
IP66(IEC standard)
|
