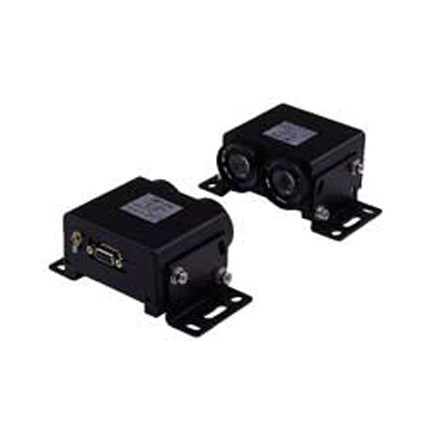

CWF-01/02 - Serial Type Optical Data Transmission Devices
Transmission distance 50m, Small size and Light weight
Necessary specifications are built-in 40x80x80mm.
This is suitable for the application such as automatic warehouse, stacker crane or overhead crane as well as BWF series.
CWF-01/02 - Serial Type Optical Data Transmission Devices
Specifications
|
Model No.
|
CWF-01A
|
CWF-01B
|
CWF-02A
|
CWF-02B
|
|
Transmission distance
|
50ｍ
|
|
Directional angle
|
±2°
|
|
Power source
|
24VDC（+10％，-10％）
|
|
Current consumption
|
80mA
|
|
Transmission method
|
Full-duplex two-way transmission
|
|
Transmission speed
|
DC to 19,200bps
|
DC to 9,600bps
|
|
Interface
|
RS-422
|
RS-232C
|
|
Modulation method
|
FSK modulation
|
|
Modulated frequency
|
Transmission:5.5MHz
Reception:6.0MHz
|
Transmission:6.0MHz
Reception:5.5MHz
|
Transmission:5.5MHz
Reception:6.0MHz
|
Transmission:6.0MHz
Reception:5.5MHz
|
|
Connection
|
D-sub connector with 9-pin
|
|
Ambient temperature/humidity
|
-10 to +50 degrees C, 85%RH or less(not icing)
|
|
Ambient illuminance
|
20,000lux or less(Halogen/incandescent lamp)
|
|
Impact resistance
|
490m/s2, each 10 time in X, Y and Z directions
|
|
Vibration resistance
|
Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y and Z directions
|
|
Noise resistance
|
Impulse noise simulator, pulse width:1µ, 100ns, repeated cycle:100Hz, normal mode 1000V, common mode 500V
|
|
Protective structure
|
IP60(IEC standard)
|
|
Warning output(ARM)
|
ON when light-receiving level margin 1.5 times or more, Photo-coupler, open-collector 35V, 50mA
|
|
Weight
|
Approx. 240g
|
