KARI Mini Float Switch Float for high or low level is selectable. Float of transfer contact is available. Teflon cable for corrosive liquid is available.

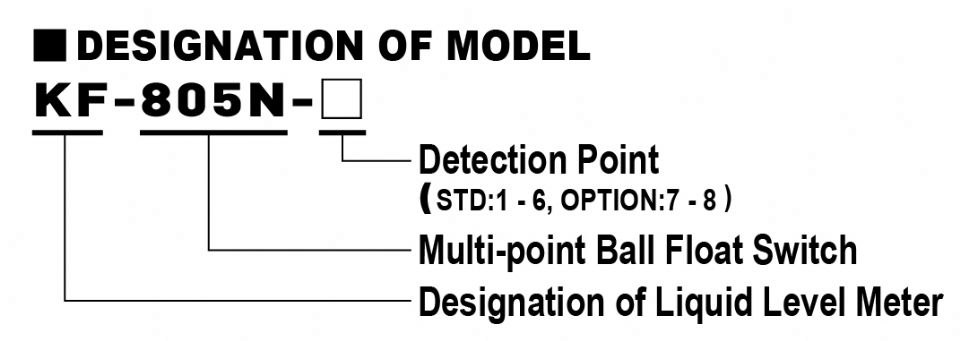

Model
KF-805N
Contact Capacity
AC250V 1A （Resistance Load, KARI Mini Float Switch alone）
Allowable Temperature
55℃
Allowable Pressure
200KPa
Specific Gravity of Liquid
Over 0.8
Material of Terminal Box
PVC
Cable Material
Rope Material
PP （Option 304SS）
Weight Material
304SS （Option PVC）
Process Connection
Equivalent to JIS 10K 100A
Enclosure Rating
Equivalent to IP-55
