KLT Amplifier Built-in type Any material can be detected. Stable measurement even while charging. No influence by atmosphere such as dusts. Sensor part custom made for each application. Indicator as an option.

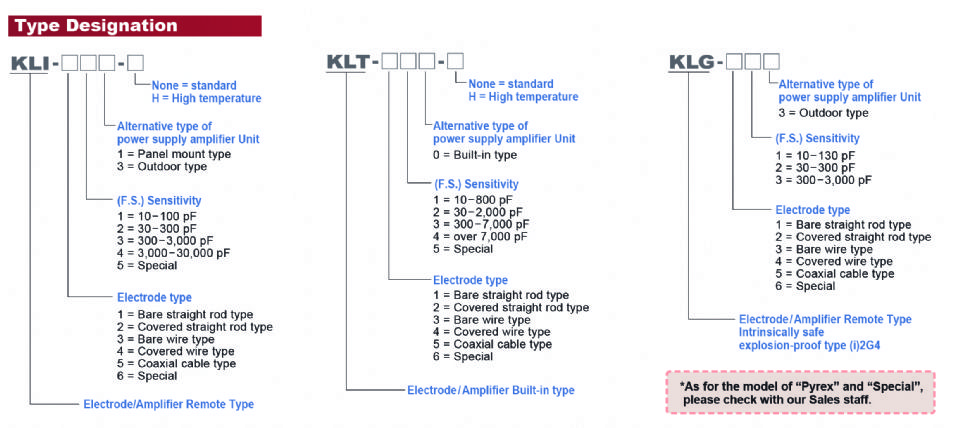

Model
KLI Series
KLT Series
KLG Series
Power Source
105/210VAC ±15% 50/60Hz （Power of DC24V may be possible）
Distributor （Option）
Power Consumption
4W
Output Signal
DC 4～20mA Resistance Load Max.500Ω (−) grounded
DC 4～20mA Resistance Load Max.100Ω
Measuring Sensitivity
10pF・30pF・300pF・3000pF（F・S）
10pF・30pF・3000pF
Accuracy
1%
Housing
Outdoor wall mount or panel built-in
Outdoor Wall mounting
Length of Exclusive Cable
Max．50m （25m max. as for the sensitivity class1）
Max．25m
Operating Temperature
-20～+70℃
-25～80℃ （Standard）
Enclosure Rating
Equivalent to IP-55
Equivalent to IP-66
IP-66
Color
Gold
