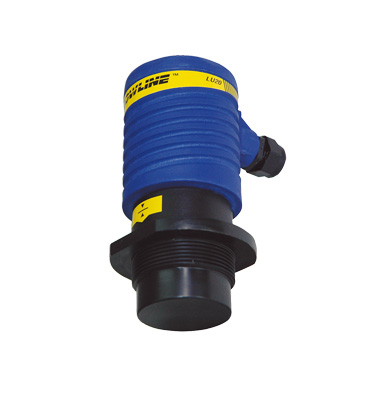

LU20-5061 Tow-wire loop type Only for liquid. Intrinsic safety as an option. Easy setting with push buttons. Various flange regulations are available. Consult us.
Model
LU20-5061
Range
15.2～548.6cm ※Min.20.3cm recommend
Dead band
Min.15.2cm ※Min.20.3cm recommend
Accuracy
±0.25%（in the air）
Resolution
3mm
Display
LCD,4-digit
Display units
cm/inch ※Default：cm
Display mode
Distance to solution level
Power Supply
12-32VDC
Signal output
4-20mA or 20-4mA two-wire
Loop resist
500Ω(24VDC)
temp.comp.
Automatic
Fail-safety
Selestable 4mA, 22mA or hold
Process temp.
-40～+60℃
Pressure
Max.200kPa
Enclosure Rating
IP65 NEMA 4X
