Mercotac Model 215-2K
- Brushless transmission technology
- Easy assembly and care unrequired body
- Data and/or power transmission
- Small sized and pretty light body
- More than 1 billion rotations long use duration
- Electrical parasites are such tiny that can be ignored, noiseless ruin
- Made in USA.
Mercotac Slip Rings Model 215-K - 2 Conductor 15 Amper 2000 Volt ( High Voltage )
- Maximum Operating Voltage: 2000V AC/DC
- Maximum Continuance Operating Current (240V AC) 30 Amper for per Conductor
- Maximum Frequency: 100 MHz
- Outer Diameter: 31,65mm
- Circuit Breaking Resistance: >50 Megaohm
|
Model
|
Features
|
|
215-2K
|
Standart Model
|
|
215-2KSS
|
Stainless Steel Housing (Suggested for humidt environment)
|
|

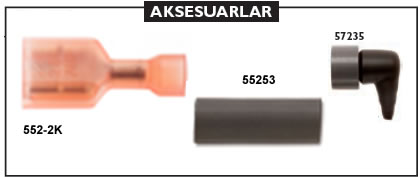

Suggested Auxiliary Connection Equipment
|
|
Model
|
Features
|
|
57235
|
Protection Kit Against Dust and Water Leaps, IP51
|
|
552KA
|
Cable Connection Terminal (22 - 18 AWG) with Model 215-2K, 4 Pieces are Supplied Free
|
|
55253
|
Tube Model for Tips of Cables with Model 215-2K, 4 Pieces are Supplied Free
|
Mercotac Slip Rings Model 215-K - 2 Conductor 15 Amper
Suggested Mounting Methods
Model 215-2K is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.
Installation Notes:
the up arrow should not point below horizontal
do not solder to or bend connector tabs
avoid lateral forces and mechanical loads (overly stiff or tight wires)
do not rigid mount both ends of connector
limit mounting eccentricity (runout / wobble) to .005" (.13mm)
provide overload protection within the circuit
avoid vibration and bumping motions
