Mercotac Model 630
- Brushless transmission technology
- Easy assembly and care unrequired body
- Data and/or power transmission
- Small sized and pretty light body
- More than 1 billion rotations long use duration
- Electrical parasites are such tiny that can be ignored, noiseless running
- Made in USA
| Model | Features |
| 630 | Standart Model |
| 630-SS | Stainless Steel Housing |

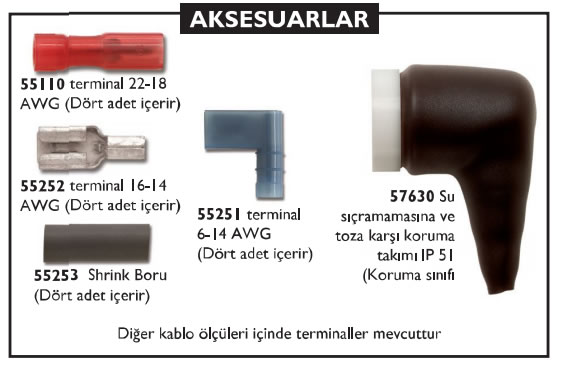

| Suggested Auxiliary Connection Equipment |
| Model | Features |
| 57630 | Protection Kit Against Dust and Water Leaps, IP51 |
| 55251 | Statical Part Cable Connection Terminal (16 - 14 AWG) with Model 630, 4 Pieces are Supplied Free. |
| 55250 | Moving Part Cable Connection Terminal (16 - 14 AWG) with Model 630, 4 Pieces are Supplied Free. |
| 55110 | For Both Parts Cable Connection Terminal (22– 18 AWG) with Model 630, 4 Pieces are Supplied Free. |
| 55253 | Tube Model for Tips of Cables with Model 630, 4 Pieces are Supplied Free |
Mercotac Slip Rings Model 630 - 6 Conductor 2x4 Amper 4x30 Amper
Suggested Mounting Methods
Model 630 is typically mounted by either the black body or the white plastic bushing on either end using a set screw. When mounting horizontally, mount the Mercotac so the body of the connector rotates.
Installation Notes:
the up arrow should not point below horizontal
do not solder to or bend connector tabs
avoid lateral forces and mechanical loads (overly stiff or tight wires)
do not rigid mount both ends of connector
limit mounting eccentricity (runout / wobble) to .005" (.13mm)
provide overload protection within the circuit
avoid vibration and bumping motions
