Ravioli DC Connectors ;
Manufactured by Ravioli since 1981, these connectors are suitable for linking motors, batteries, battery chargers for lifting trucks, aerial platforms, sweepers, scrubbers and other electrical vehicles for industry.

They are in accordance with the current Norms DIN VDE 0623-589, which define unified distances between centres and unified coupling dimensions and which currently represent the evolution of the previous DIN Norms 43589 – part 1 and 2 - and FEM 4007a and 4007b..

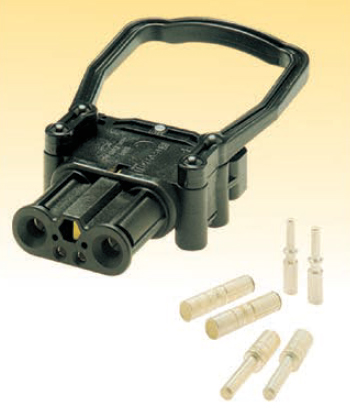

Each model is made up of a plug and a socket, different from each other, and both prepared for a fitting for a handle.

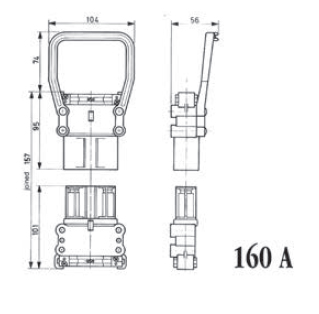

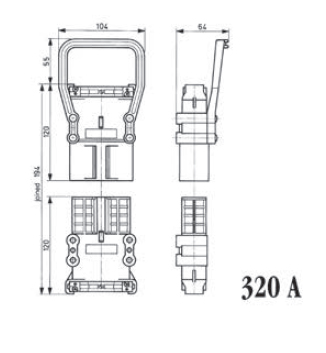

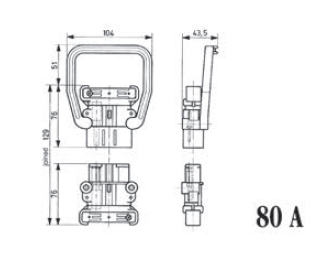

The range 80-160-320 A includes two versions:

- Shock resistant housing
For all applications requiring robustness and high resistance against shocks;

- Innovative, acid-proof polymer housing:
For all applications requiring high resistance against acid.
All electrical parts are protected against accidental contact. Standard equipment includes a balanced cable clamp , ensuring IP23 to the final coupled connectors.
The main contacts are silver-plated, electrolytic copper against corrosion, ensuring the best crimping with the correct assembly.

- Maximum operative voltage: 150 Vdc
- Temperature range: -20°C +90°C


DIN Europe Series connectors are in accordance with the following Directives and Norms:


They are warranted by our CE Certificate, available on request, where it's declared that the product is manufactured by Ravioli according with precise and acknowledged Safety Norms, and with the quality standard stated in its Quality Management System UNI EN ISO9001-2008

Assembly and maintenance
The installation of twin connectors Europe Series can only be performed by trained personnel following the current safety norms. Before wiring, it's compulsory turn out the voltage and have the machine in a condition of safety. ATTENTION: Contact with the conductors can result in serious injury from electrical shock and electrocution. For correct installation, environment operative temperature must be included between -20°C and +90°C. Connectors are not suitable for any applications in potentially explosive areas. Protect yourself suitably against eventual acid. Do not use any oil, grease or solvent. Connectors are lubricated with a special grease; we recommend to use no different grease. Connections must be duly carried out, according with the machine electrical scheme. After installation, it is obligatory to verify that the coding pin is suitable for the battery you have to use, and that the voltage indicated on the pin is the same established for the machine and for the battery charger; it is obligatory to verify the correct functioning of the connector, the machine and the battery charger

Maitenance:
• Verify that connectors match correctly.
• Verify that connectors are entire and that they do not present any faulty parts.
• Should there be any faulty parts, replace them.
• Verify that main contacts cables are locked by the cable clamp.
