LOGO Serisi - TL222
The range of LOGO series type TL222 contactors, which are both compact in size and powerful, has been designed in accordance with the safety requirements as set out in the EUROPEAN DIRECTIVE CEE 89/392 as well as with Norms CEI EN 60947-4-1 and EN 1175-1. The products included in the range are suitable for the traction and material handling sectors using direct current and can be applied to lift trucks, industrial cleaning machines, various services on board ships and boats as well as to road and rail transport vehicles.

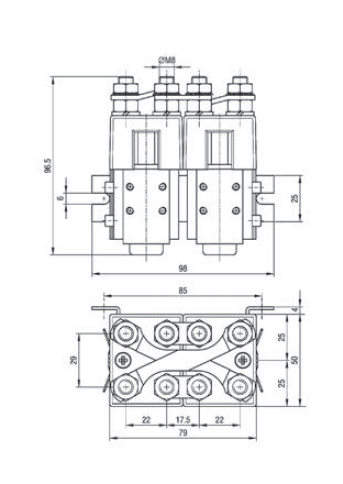

The joining of two contactors of the type TL22 or TL22P makes the construction of corresponding motor reversers possible, and these are supplied with electrical connections and with a common
bracket.
Main contacts: 2x2NO
– 50% intermittent duty (standard version)
– 100% duty (option P)
Neither magnetic blowouts nor auxiliary contacts can be mounted
on these motor reversers.


Coils
The d.c.coils feature terminals with 6mm double connections.
Standard duty is in intermittent mode (50%). Maximum working time is 15 mins (temporary duty).
Normalised voltages: 12 - 24 - 36 - 48 - 72 - 80 - 96V.
The following are available: reduced consumption coils for continuous duty-option P.

Main contacts
These contactors have double breaking contacts, in Ag special alloy, resistant to arc and suitable for heavy duty.
The contacts are also available as spare parts.

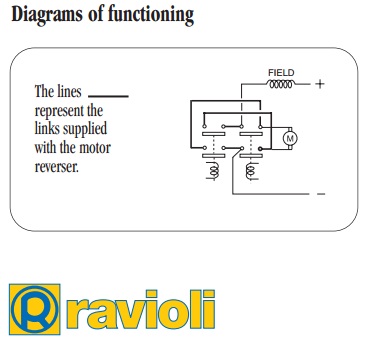

Correct use of the motor reverser
The used contactors have fast drop-out times (10 msec) and relatively long pull-in times (approx. 20 msec).
In this way, safe reversals can be carried out without the risk of the contacts being closed at the same time.
However, the use of suppressor diodes increases drop-out times, and therefore it is important to choose the most suitable type of suppressor (diode+resistor).

LOGO TL22 ve TL22P serisi iki kontaktörün birleşmesi sonucu motor reserver yapısında bir ürün elde edilmiş olur. Elektrik bağlantıları için yaygın olarak kullanılan kelepçeleme sistemi kullanılmıştır.

Ana Kontaklar : 2x2 NO
- %50 Kesintili Mod ( Standart )
- %100 Sürekli Bobin Modu ( Opsiyon P )

Manyetik söndürme ( bırakma ) bobini ve yardımcı kontak ilavesi opsiyonları bu kontaktörlerde mümkün değildir.
Daha detaylı teknik özellikler için TL 22 ve TL 22P ürünlerini inceleyebilirsiniz.
