Ultrasonic Sludge Density Meter KWS200

S2-S Spool piece type

General Information
Technical Information
Docs
Other Features
Product Video

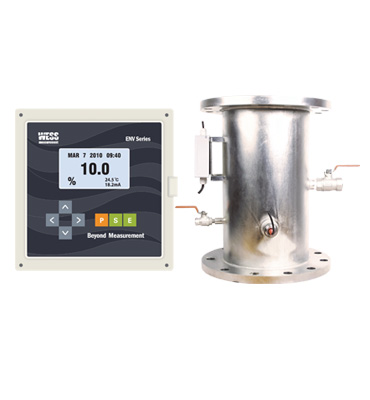

S2-S Spool piece type
Measurable at any size from 50A-600A.
Transmitting and receiving with 2 pairs of sensor is available as an option.

Model	KWS200 Controller
Measuring Ranges	Standard：2,000～200,000mg/ℓ(0.2～20%） Option：2,000～400,000mg/ℓ(0.2～40%）
Measuring Mode	Process Mode,Real-time Mode
Resolution	100mg/ℓ 0.01％）
Accuracy	±1% or ±2000mg/ℓ (whichever is greater)
Repeatability	±1% of reading
Display	Density、Time、Pipe condition、Temperature、 Flow condition、mA、Self testing、etc
Temperature	-20～+60℃
Outputs	4-20mA　max.750Ω SPDTx3、AC250V 5A（ER、R1、R2） RS232C（Standard）、 RS485（Option）
Power Source	100～240VAC　50/60Hz　below 6W （Option：20～30VDC）
Enclosure Rating	IP67

Model	S2-S（Spool piece type）	S2-T（Tank Mount type）	S2-C（Clamp on type）
Material	304SS	304SS	MC Nylon and Aluminum
Transmitter and Receiver Material	Epoxy	Epoxy	Epoxy
Pipe Size	50A～600A		50A～300A
Frequency	1MHz	1MHz	0.83MHz～1.5MHz (Frequency Auto-selection)
Max. Pressure	10bar	10bar	10bar
Cable Length	10m（max 100m）	10m（max 100m）	10m only
Temperature	-10～+60℃	-10～+60℃	-20～+60℃
Enclosure Rating	IP65、IP68（Option）	IP68	IP68

S2-S Spool piece type

Operating Principles

Almost all measuring instruments for suspended solid substances are based on a method of processing the attenuation amount of ultrasonic waves through comparison of amplitude variations of the wave receiving signal. When this method is used, the capacity of solid substances in a liquid is kept fixed. Because the pipe shape and flow velocity affect the stability and reliability of measurement, high-precision measurement is impossible. Our KWS200 type meter increases precision by method of calculating energy with the wave receiving envelope, not by utilizing amplitude variations of the wave receiving signal.
