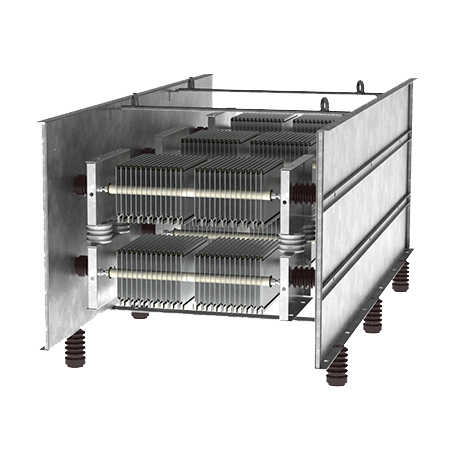

Steel grid resistors LACG-LV, CGC-LV

Features

  • Power 3 - 120kW
  • Overload factor 10xPn @ 5s
  • Working voltage 1000VAC / 1400VDC
  • Dielectric insulation voltage (50Hz, 1 min) 3500V
  • Protection degree IP00-IP23
  • Natural air cooled

Technical data

Industrial metal grid resistors and metal grid resistor blocks are used as brake resistors, filters, crowbar resistors and loadbanks. Depending on Ohm value, the type of grid is selected. The power load determines the number of needed grids and the size of the cabinet. They are offered in IP00, IP10, IP13, IP20 and IP23.
