MQ400

MQ400 - Solid Slip Rings
MQ400 döner aksamlar, 4 geçiş yolu pnömatik/ hidrolik.
Ortam tipleri: Hava /Gaz, Kimayasal, DI / Musluk Suyu, Yağ, Su/Glikol.
Sağlam tip döner aksamlar, içten delikli değil.
Pnömatik, hidrolik soğutucu ve vakum uygulamaları için uygundur.
Port Ebatları:M5,G1/8,G1/4,G3/8,G1/2
Standart, satışa hazır
​Teslim sürelerini ve maliyetlerini düşürecek şekilde stok ürünlerde müşteriye özel modifikasyonlar.

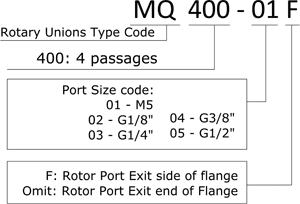

 PARÇA# Açıklaması:

MQ400
Rotary Joints Specifications
PassageWay 4 Max. Pressure 1500 PSI (100 BAR)
Max. Vacuum 10 HG Max. Rotational Speed 500RPM
Material Type Aluminum Temp. -40° C to 105° C

1) Connection Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1". Other sizes available upon request.

2) Connection Type NPT & BSPP threads standard. SAE, NPTF, and other thread options are available on a custom basis.

3) Plating and Coatings Black oxide plating is standard. Anodized, E-Nickel, Chrome, Nitride, Ceramic and other specialty platings are available as custom options.

4) Materials Carbon steel is the standard material for the GP Series, Stainless Steel is the standard material for the GPS Series. Aluminum, Brass, and other materials are available on a custom basis.

5) Slip Ring Options The MEPH Series unions are available with a number of electrical slip ring options for power, signal and data transfer. The assembly is available with an aluminum cover to protect the slip ring during use in demanding environments.

6) Media Types: Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol

Typical Application

  • Industrial machinery
  • Filling equipment
  • Exhibit / display equipment
  • Medical equipment
  • machining centerse
  • rotary index tables
  • Mechanical arm
  • Surgery lamp
  • heavy equipment turrets or cable reels
  • Revolving door
  • Packaging machine
  • Coiling machine
  • test equipment
  • packaging machines
