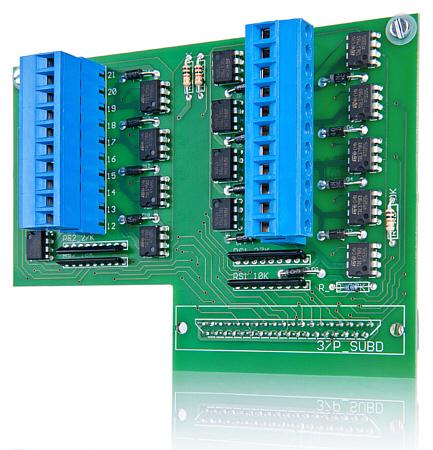

EPR16-OK output card

These cards serve as a power amplification for the outputs of the PLCs EPR16, EPR16S.

The output card EPR16-OK possesses 16 electronic outputs for the devices EPR16, EPC16 and EPR16S. The Watch Dog output is available as 0.5A-transistor output. All outputs are electrically isolated, durable short-circuit proof and temperature rise-protected. There are one or two contact blocks with a common connection in each for output 1..8 with Watch Dog as well as for output 9..16.



EPR16-OK

Applications

Power amplification for PLCs EPR16, EPR16S, EPC16

Transistor-Outputs

16 N/O

Watch-Dog-Output

1 transistor output

2 contact blocks each with a common connection



Contact rating

DC 10-30 V smoothed, 0.5 A

Residual ripple

< 5%

durable short-circuit proof

yes

Temperature rise disconnection

yes

Temperature range

0 - +60°C

Order No.

585455



Operating Instruction output card EPR16RE, EPR16OK
