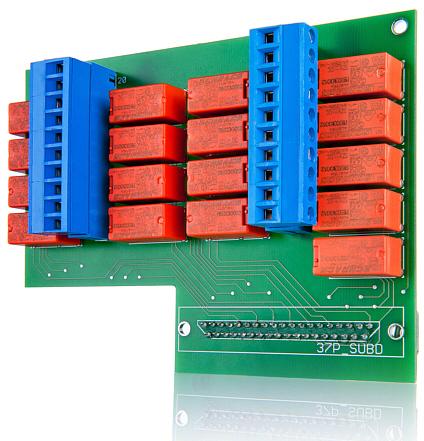

EPR16-RE output card

These cards serve as a power amplification for the outputs of the PLCs EPR16, EPR16S.

The output card EPR16-RE possesses 16 digital relay outputs for the devices EPR16, EPC16 and EPR16S. The Watch Dog output is available as relay contact too. All relay contacts are protection-wired with 250V-varistors.

There are two contact blocks with a common connection in each for output 1..8 with Watch Dog as well as for output
9..16. Both blocks are electrically isolated and can be operated therefore with different voltages.

EPR16-RE

Applications

Power amplification for the PLCs EPR16, EPR16S, EPC16

Outputs

16 N/O

Watch-Dog-Output

1 N/O

2 contact blocks each with a common connection



Contact rating

AC 250 V, 3A; DC 24 V, 3A

max. sum current for each block

8 A

Insulation voltage coil/contact

2.5 kV

Temperature range

0 - +60°C

Order No.

585450



Operating Instruction output card EPR16RE, EPR16OK
