Gold Solo Trombone Highlights:
- Gold Line core motion control technology
- Ultra-compact, highest power density
- Highly efficient, high bandwidth performance
- Multiple communication options: EtherCAT, CANopen, USB, Ethernet
- Supports a wide variety of feedback sensors
- Advanced filtering and gain scheduling options for enhanced dynamic performance
- Vector control sinusoidal commutation
Electrical Specifications
|
Feature
|
Units
|
12/400
|
16/400
|
R17/400
|
R22/400
|
8/800
|
12/800
|
R11/800
|
R16/800
|
|
Minimum supply voltage
|
VDC
|

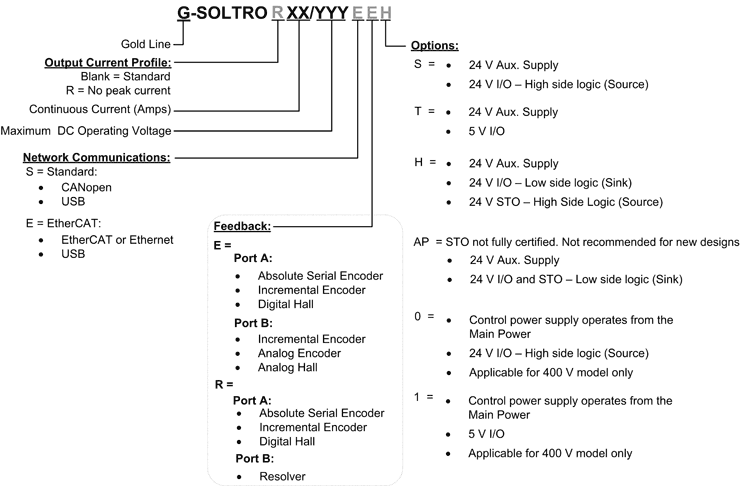

S suffix in P/N*: 50
No S suffix in P/N: 100
|
S suffix in P/N*: 95+
|
|
Nominal supply voltage
|
VDC
|
325
|
560 for 400 VAC
680 for 480 VAC
|
|
Maximum supply voltage
|
VDC
|
400
|
780
|
|
Maximum continuous
power output
|
W
|
Up to 10 kW of continuous qualitative power
|
|
Efficiency at
rated power
(at nominal conditions)
|
%
|
> 98
|
|
Auxiliary supply
voltage option
|
VDC
|
18 V to 30 V
Only for Control Supply S suffix Model
|
|
Auxiliary power supply
|
VA
|
≤5 VA without external loading
≤8 VA with full external loading
|
|
Continuous current limit
(Ic) Amplitude sinusoidal
/DC trapezoidal
commutation
|
A
|
12
|
16
|
17
|
22
|
8
|
12
|
11
|
16
|
|
Sinusoidal continuous
RMS current limit (Ic)
|
A
|
8.5
|
11.3
|
12
|
15.5
|
5.7
|
8.5
|
7.8
|
11.3
|
|
Peak current limit
|
A
|
2 x Ic
|
No peak
|
2 x Ic
|
No peak
|
|
Weight
|
g (oz)
|
362 g (12.8 oz)
|
|
Dimensions
|
mm (in)
|
111 x 76 x 60 (4.37" x 3" x 2.36")
|
|
Digital in/Digital
out/ Analog in
|
|
6/4/1
|
|
Mounting method
|
|
Panel / Wall Mounted
|
