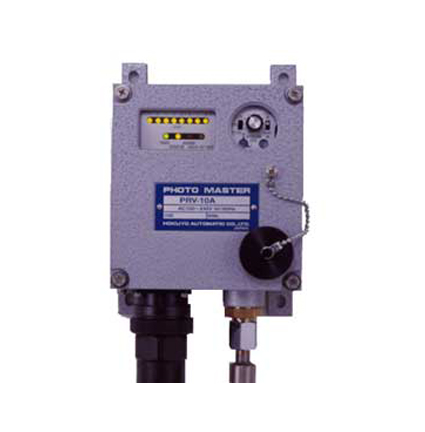

Hokuyo PRV-10 LED Type Optical fiber type HMD
Hot metal with 360 to 1,200 degrees C
Setting of sensitivity adjustment against temperature of detecting material had not been obvious. However this equipment displays reception level lamps in every twice using linear characteristic relationship between temperature and analog output voltage(8 levels). Operation setting can be made with level display or analog voltage. Also, there are three ranges, L/M/H as detection temperature changeover switch. Any parts such as slits etc. aren't required for 350 to 1,200 degrees C. It is epoch-making HMD that operation point setting is possible with detecting condition before operation.
・This device doesn't specify power source. It is capable of being used within the scope of 100 to 240VAC.
・Water-cooling or air-purge isn't required for sensor head because non-air dust purge hood is applied.
・Warning output is provided.
・We have wide variety of sensor head. Refer to data sheets of head.
Specifications
|
Model No.
|
|
Amplifier:
|
PRV-10A*1
|
|
Sensor head:
|
FHM-201(Basic type),
FHM-203(Narrow directivity type),
FHM-201-8WA (Wide directivity type)
|
|
Fiber unit *2:
|
FHV-321(2m), FHV-351(5m), FHV-411(10m)
|
|
|
Detectable objects
|
Heated material with 360 to 1,200 degrees C
|
|
Detecting distance
|
5m(Different depending on the size or temperature of detectable objects against detection range, or fiber length*3)
|
|
Power source
|
100 to 240VAC(+10%, -15%, 50/60Hz)
|
|
Control output
|
1C relay contact(250VAC 3A, COSφ=1),
Photo-coupler(Max. 120V, 100mA)
|
|
Warning output
|
|
Ambient temperature
|
Amplifier:-10 degrees C to +55 degrees C
Sensor head/Fiber unit:-10 degrees C to +200 degrees C
|
|
Ambient humidity
|
45 to 85%RH(Not icing)
|
*1 PRV-10B with communication function and PRV-10C with detection temperature outside changeover function are also available.
*2 3m, 15m and 20m type are also available.
*3 Ask us in details.
Characteristic data(Typical example)
Steel temperature characteristics
Min. detectable objects and detectable temperature characteristics
External dimension
Connection
Control output(Changeover by inner switch)
|
Operating mode
|
Light-ON
|
Dark-ON
|
|
Pin No. of connector.
|
5-6
|
9-10
|
10-11
|
5-6
|
9-10
|
10-11
|
|
Power-OFF state
|
OFF
|
OPEN
|
CLOSE
|
OFF
|
OPEN
|
CLOSE
|
|
Power-ON state
|
When light-entering
|
ON
|
CLOSE
|
OPEN
|
OFF
|
OPEN
|
CLOSE
|
|
When light-interrupting
|
OFF
|
OPEN
|
CLOSE
|
ON
|
CLOSE
|
OPEN
|
Warning output
|
Pin No. of connector.
|
7-8
|
12-13
|
13-14
|
|
Power-OFF state
|
OFF
|
OPEN
|
CLOSE
|
|
Power-ON state
|
When normal
|
ON
|
CLOSE
|
OPEN
|
|
When troubled
|
OFF
|
OPEN
|
CLOSE
|
