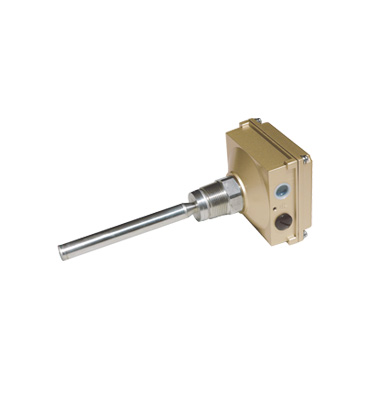

KVK-111 High Sensitivity Type Screwed Joint Type Powder with specific gravity over 0.03 is detectable. Power supply DC24V is available as option. Fail safe function is equipped as standard.
Model
KVK Type
KVA Type
KVF Type
Power Source
105/210VAC ±10% 50/60Hz
Sensitivity
over 0.03 Specific Gravity
over 0.1 Specific Gravity
over 0.3 Specific Gravity
Output Contact
SPDT 250VAC 10A 30VDC 10A（Resistance load）
SPDT 250VAC 10A (Resistance load)
ON Delay
about 10sec max. variable
Allowable Temperature (Amplifi er)
-20～+60℃ （No Condensation or Freeze required）
Allowable Temperature (Probe)
-20～80℃（Built-in construction） -20～+150℃（Remote construction） （No Condensation or Freeze required）
-20～80℃ （No Condensation or Freeze required）
Allowable Pressure
980kPa
49kPa
Process Connection
R1・1/2
JIS 5K 65A
Enclosure Rating
IP67
