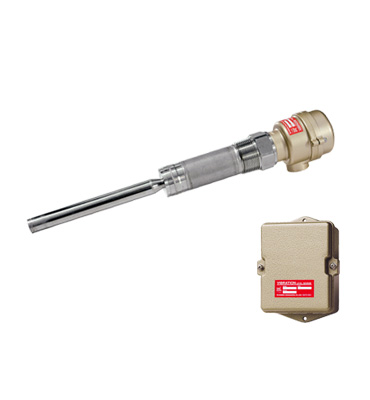

KVK-36 High Sensitivity Type Extension Protective-tube･Screw Type
A special model for remote amplifier and its small box.
Powder with specific gravity over 0.03 is detectable.
Power supply DC24V is available as option.
Fail safe function is equipped as standard.
Insertion length 4000mm Max.

Model	KVK Type	KVA Type	KVF Type
Power Source	105/210VAC ±10% 50/60Hz	105/210VAC ±10% 50/60Hz	105/210VAC ±10% 50/60Hz
Sensitivity	over 0.03 Specific Gravity	over 0.1 Specific Gravity	over 0.3 Specific Gravity
Output Contact	SPDT 250VAC 10A 30VDC 10A（Resistance load）	SPDT 250VAC 10A 30VDC 10A（Resistance load）	SPDT 250VAC 10A (Resistance load)
ON Delay	about 10sec max. variable	about 10sec max. variable	about 10sec max. variable
Allowable Temperature (Amplifi er)	-20～+60℃ （No Condensation or Freeze required）	-20～+60℃ （No Condensation or Freeze required）	-20～+60℃ （No Condensation or Freeze required）
Allowable Temperature (Probe)	-20～80℃（Built-in construction） -20～+150℃（Remote construction）（No Condensation or Freeze required）	-20～80℃（Built-in construction） -20～+150℃（Remote construction）（No Condensation or Freeze required）	-20～80℃ （No Condensation or Freeze required）
Allowable Pressure	980kPa	980kPa	49kPa
Process Connection	R1・1/2	R1・1/2	JIS 5K 65A
Enclosure Rating	IP67	IP67	IP67
