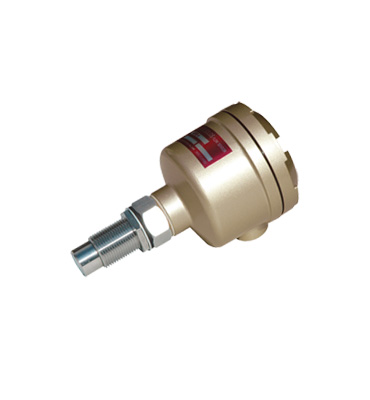

MWS2-24TN/RN-S Screwed Joint Type

MWS2-24TN/RN-S Screwed Joint Type
Process connection G1B.
Measuring distance 2m Max.

Operating Principles

Wheng the interval betweeng the wave transmitter and the receiver is blocked on the linear axis by the measured substance, microwaves are reflected and absorbed. The wave receiver cannot receive microwaves and the contact is output.

Model

MWS2-24TN/RN Standard Flange Type

Power Source

105V/210VAC ±10% 50/60Hz

Frequengcy

24GHz

Operating Distance

Switching System by Range SW
( 1:15m、 2:25m、 3:35m)

Contact Capacity

250VAC 5A

ON Delay

Max.10seconds (variable)

Power Consumption

2VA (Transmitter)/5VA (Receiver)

Ambiengt Temperature

Body:-20℃~+80℃(Built-in construction)
    -20℃~+60℃(Remote construction)
Amplifi er:-20℃~+60℃

Color

Gold

Process Connection

equivalent to JIS5K 50A or over

Enclosure Rating

IP67
