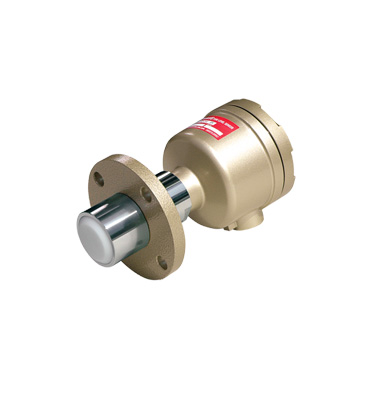

MWS2-24TN/RN Standard Flange Type
Measuring distance 35m Max.
Boss length shorter model is available.
Flange size JIS5K65A and the material AC are available.
Wetted part material stainless steel is available.
Operating Principles
Wheng the interval betweeng the wave transmitter and the receiver is blocked on the linear axis by the measured substance, microwaves are reflected and absorbed. The wave receiver cannot receive microwaves and the contact is output.
|
Model
|
MWS2-24TN/RN Standard Flange Type
|
|
Power Source
|
105V/210VAC ±10% 50/60Hz
|
|
Frequengcy
|
24GHz
|
|
Operating Distance
|
Switching System by Range SW
（ 1：15m、 2：25m、 3：35m）
|
|
Contact Capacity
|
250VAC 5A
|
|
ON Delay
|
Max.10seconds (variable)
|
|
Power Consumption
|
2VA (Transmitter)/5VA (Receiver)
|
|
Ambiengt Temperature
|
Body：-20℃～+80℃（Built-in construction）
-20℃～+60℃（Remote construction）
Amplifi er：-20℃～+60℃
|
|
Color
|
Gold
|
|
Process Connection
|
equivalent to JIS5K 50A or over
|
|
Enclosure Rating
|
IP67
|
