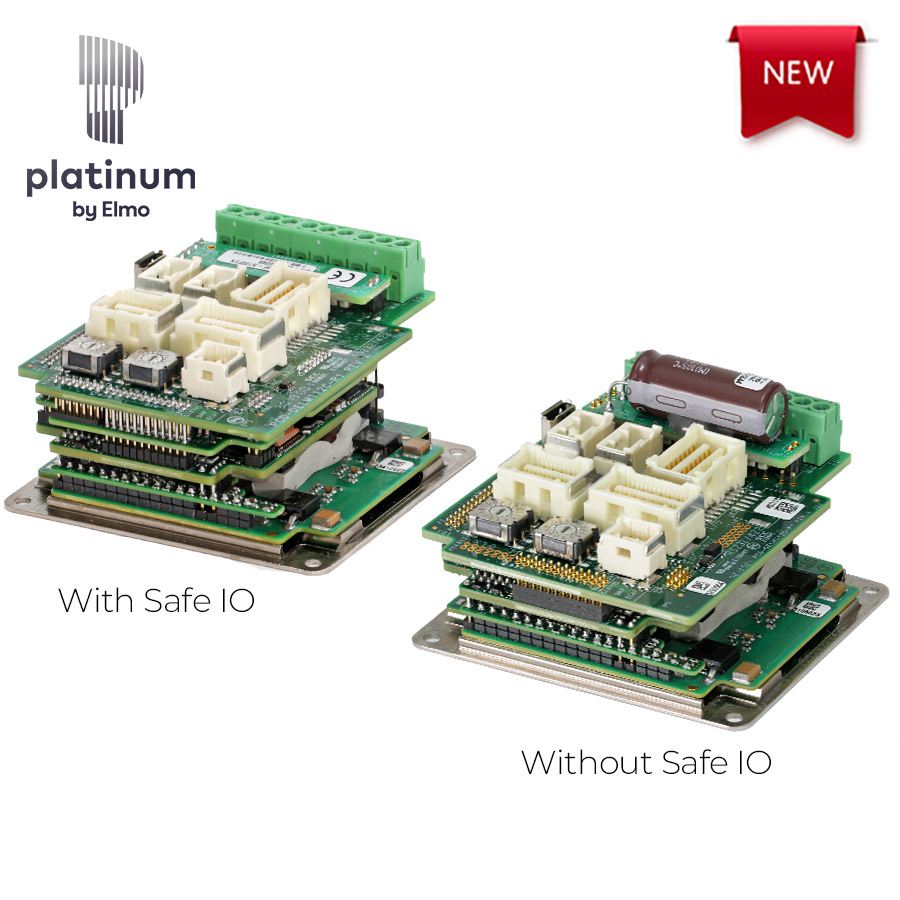

Platinum Solo Bell Highlights
- Designed to drive any motor:
- Two phases stepper (in closed or open loop)
- Brushless sinusoidal or trapezoidal servo motor
- Two DC or voice coil motors (controlled independently by one Platinum Bell)
- Two single phase servo motors (controlled independently by one Platinum Bell)
- Up to 25A/100V, 9A/200V
- Ultra-Fast EtherCAT Networking
- Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE
- Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)
- Platinum Series HighlightsNEW
- Best-In-Class servo performance
- World's smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)
- Higher bandwidth, faster response, enhanced linearity and highest control resolutions
- Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
- Added feedback support: up to three simultaneously, or two absolute feedbacks
- High processing power with large memory resources for better control, enhanced processing, and real time recording
Electrical Specifications
|
Feature
|
Units
|
1/100
|
2.5/100
|
5/100
|
10/100
|
15/100
|
20/100
|
25/100
|
|
Minimum supply voltage
|
VDC
|
10
|
|
Nominal supply voltage
|
VDC
|
85
|
|
Maximum supply voltage
|
VDC
|
95
|
|
Maximum continuous power output
|
W
|
80
|
200
|
400
|
800
|
1200
|
1600
|
2000
|
|
Efficiency at rated power
(at nominal conditions)
|
%
|
> 99
|
|
Maximum output voltage
|
|
> 95% of DC bus voltage at f = 22 kHz
|
|
Control supply
|
VDC
|
12 to 60 V for functional Safety
(up to 6 VA inc. 5 V/2 x 200 mA for Encoder)
|
|
Amplitude sinusoidal/
DC continuous current
|
A
|
1.0
|
2.5
|
5
|
10
|
15
|
20
|
25
|
|
Sinusoidal continuous
RMS current limit (Ic)
|
A
|
0.7
|
1.8
|
3.5
|
7
|
10.6
|
14.1
|
17.5
|
|
Peak current limit
|
A
|
2 x Ic
|
|
Feature
|
Units
|
3/200
|
6/200
|
9/200
|
|
Minimum supply voltage
|
VDC
|
20
|
|
Nominal supply voltage
|
VDC
|
170
|
|
Maximum supply voltage
|
VDC
|
195
|
|
Maximum continuous power output
|
W
|
480
|
960
|
1450
|
|
Efficiency at rated power (at nominal conditions)
|
%
|
> 99
|
|
Maximum output voltage
|
|
> 95% of DC bus voltage at f = 22 kHz
|
|
Control supply
|
VDC
|
12 to 60 V for functional Safety
(up to 6 VA inc. 5 V/2 x 200 mA for Encoder)
|
|
Amplitude sinusoidal/DC continuous current
|
A
|
3
|
6
|
9
|
|
Sinusoidal continuous RMS current limit (Ic)
|
A
|
2.1
|
4.2
|
6.3
|
|
Peak current limit
|
A
|
2 x Ic
|
