Hokuyo - UST-10LX/20LX
Alias Smart Mini
・Supply voltage 10～30V
・Measurement distance 10m/20m
・Field of view 270°
・Interface Ethernet
・The smallest and the lightest of its kind, 130g
・It is possible to detect size, position and the moving direction of objects.
Specifications
|
Product name
|
Scanning Laser Range Finder
|
|
Model
|
UST-10LX
|
UST-20LX
|
|
Supply voltage
|
DC 12V/DC 24V (operation range 10 to 30V ripple within 10%)
|
|
Supply current
|
150mA or less (during start up 450mA is necessary.)
|
|
Light source
|
Laser semiconductor (905nm), Laser class 1(IEC60825-1:2007)
|
|
Detection range
|
0.06m to 10m (white Kent sheet)
0.06m to 4m (diffuse reflectance 10% )
Max. detection distance : 30m
|
0.06m to 20m (white Kent sheet)
0.06m to 8m (diffuse reflectance 10% )
Max. detection distance : 60m
|
|
Accuracy
|
±40mm*1
|
|
Repeated accuracy
|
σ<30mm*1
|
|
Scan angle
|
270°
|
|
Scan speed
|
25ms (Motor speed 2400rpm)
|
|
Angular resolution
|
0.25°
|
|
Start up time
|
Within 10 sec (start up time differs if malfunction is detected during start up)
|
|
Input
|
IP reset input, photo-coupler input(current 4mA at ON)
|
|
Output
|
Synchronous Output, photo coupler open collector output 30VDC 50mA MAX.
|
|
Interface
|
Ethernet 100BASE-TX
|
|
LED display
|
Power supply LED display(Blue) : Blinks during start up and malfunction state.
|
|
Surrounding intensity
|
Less than 15,000lx
Note : Avoid direct sunlight or other illumination sources as it may cause sensor malfunction
|
|
Ambient temperature and humidity
|
-10°C to +50°C, below 85%RH(without dew, frost)
|
|
Storage temperature and humidity
|
-30°C to +70°C, below 85%RH(without dew, frost)
|
|
Vibration resistance
|
10 to 55Hz double amplitude of 1.5mm for 2hrs in each X, Y, and Z direction
55 to 200Hz 98m / s2 sweep of 2min for 1hr in each X,Y and Z direction
|
|
Vibration resistance(Operating)
|
55 to 150Hz 19.6m/s2 sweep of 2min for 30min in each X,Y and Z direction
|
|
Shock resistance
|
196m/s2 (20G) X,Y and Z direction 10 times.
|
|
EMC standards
|
(EMI)
EN61326-1：2013
EN55011：2009 + A1：2010
(EMS)
EN61326-1:2013
EN61000-4-2:2009
EN61000-4-3:2006 + A1：2008 + A2：2010
EN61000-4-4:2012
EN61000-4-6:2009
EN61000-4-8:2010
|
|
Protective structure
|
IP65
|
|
Weight
|
130g(Excluding cable)
|
|
Material
|
Front case: Polycarbonate, Rear case: Aluminum
|
|
Dimensions (W×D×H)
|
50×50×70mm(sensor only)
|
*1. Under the factory standard testing conditions using white Kent sheet.

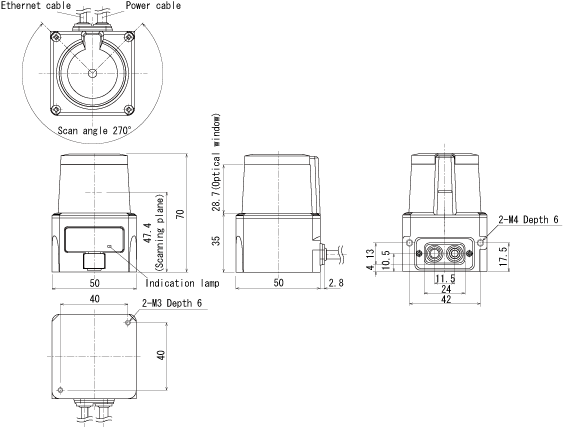

External dimension

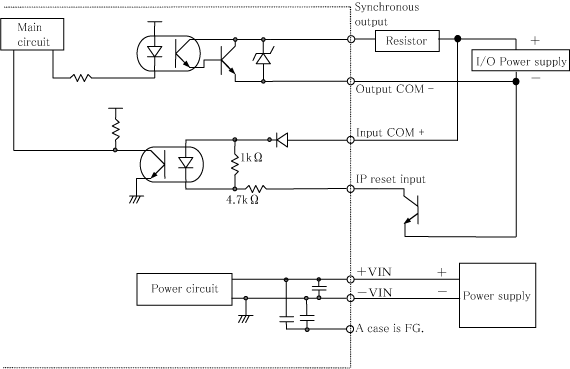

Output circuit
Connection
Power source, I/O cable
Cable length: 1000mm Flying lead cable(AWG28)
|
Color
|
Signal
|
|
Red
|
COM Input+
|
|
Gray
|
COM Output-
|
|
Light Blue
|
IP Reset Input
|
|
Orange
|
Synchronous Output
|
|
Brown
|
+VIN(12VDC/24VDC)
|
|
Blue
|
-VIN
|
Note : Direction of Inputs and Outputs are mentioned from the sensor's side.
Ethernet cable
Cable length: 300mm
|
Color
|
Signal
|
|
Blue
|
TX+
|
|
White
|
TX-
|
|
Orange
|
RX+
|
|
Yellow
|
RX-
|
