ME1221 - Ethernet / Gigabit Bağlantı Slip Rings
1 kanal 1000M Ethernet + 1~16 devre güç 2A/sinyal
ME1221; 1 kanal 1000M baseT ethernet destekli slip ring, dış kompakt çapı 22mm, standart, satışa hazır, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır.
| ME1221-S04 |
22mm*40mm |
4 |
1 |
| ME1221-S08 |
22mm*40mm |
8 |
1 |
| ME1221-S12 |
22mm*40mm |
12 |
1 |
| ME1221-S16 |
22mm*40mm |
16 |
1 |
| Ethernet Specifications |
| Ethernet |
1000M baseT |
Ethernet connectors |
RJ45 |
| BER |
10E-11 |
Insert loss |
2db |
| Power/signal Specifications |
| Circuits |
1~16(see table as above) |
Current |
Signal(2A) |
| Voltage |
250 VDC/VAC |
Max speed |
600RPM |
| Housing Material |
Plastic |
Torque |
0.08N.m |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<5 milliohms |
Contact Resistance |
<100mOhm(AWG16#,300mm) |
| Dielectric strength |
600VDC@50Hz |
Lead Wire |
UL Teflon® Awg22 |
| Insulation resistance |
600MΩ@600VDC |
Lead Lengths |
250mm(Can be Longer on Request) |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 85% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |

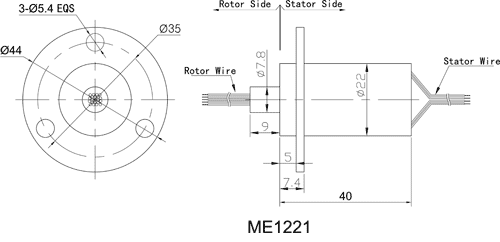

Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
- If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
- ME12219 is the high-end version corresponding to ME1221.
- Optional flange mounting.
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- High temperature is optional.
- Military Grade.
Flange Mounting Instructions
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure
Shaft Mounting Instructions(For Through bore style)
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).
2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
Typical Application
- CCTV Monitoring System.
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipmen
- Manufacturing and process control equipment
