MEPH100 - Pnömatik Hidrolik Tip Slip Rings
MEPH100 döner aksamlar, 1 geçiş yolunu destekler pnömatik/hidrolik, güç, sinyal, Ethernet, USB, Devicenet, Control Net, Canbus ile talep üzerine kombine edilebilir. Ayrıca şaft ile veya flanşlı bağlantı ile bağlanabilir.

Ortam Tipleri: Hava / Gaz, Kimyasal, DI / musluk suyu, yağ, su /glikol

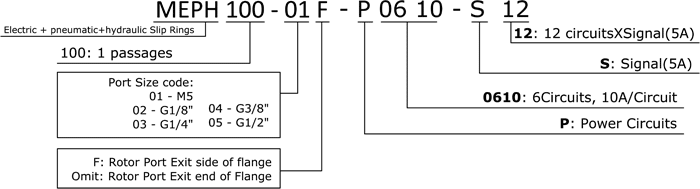

PART #	WAY(PASSAGE)	10A	SIGNAL/5A
MEPH100-XXX	1	0	0
MEPH100-XXX-S06	1	0	6
MEPH100-XXX-P0610	1	6	0
MEPH100-XXX-S12	1	0	12
MEPH100-XXX-P0610-S06	1	6	6
MEPH100-XXX-P1210	1	12	0
MEPH100-XXX-S18	1	0	18
MEPH100-XXX-P0610-S12	1	6	12
MEPH100-XXX-P1210-S06	1	12	6
MEPH100-XXX-P1810	1	18	0
MEPH100-XXX-S24	1	0	24
MEPH100-XXX-P0610-S18	1	6	18
MEPH100-XXX-P1210-S12	1	12	12
MEPH100-XXX-P1810-S06	1	18	06
MEPH100-XXX-P2410	1	24	0
MEPH100-XXX-S30	1	0	30
MEPH100-XXX-S36	1	0	36
MEPH100-XXX-S48	1	0	48
MEPH100-XXX-S60	1	0	60
MEPH100-XXX-S72	1	0	72

Rotary Joints Specifications
PassageWay	1	Max. Pressure	1500 PSI (100 BAR)
Max. Vacuum	10 HG	Max. Rotational Speed	500RPM
Material Type	Aluminum	Temp.	-40° C to 105° C

Electrical Specifications

Rating voltage

600 VDC/VAC

Contact material

Precious Metal:Gold-Gold

Dielectric strength

1000VDC@50Hz

Lead Wire

UL Teflon®

Insulation resistance

1000MΩ@600VDC

Lead Lengths

250mm

Operating Temp.

-40°C to 80°C

Protection

IP51

Mechanical vibratio

MIL-SID-810E

Humidity

10% to 90% RH

Materials

Lead Free,RoHS compliant

CE Certified

YES

Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG17, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

Lead wire Color codes
Rings#	Color Code	Rings#	Color Code	Rings#	Color Code
1	BLK	5	YEL	9	GRY
2	BRN	6	GRN	10	WHT
3	RED	7	BLU	11	PINK
4	ORN	8	PURPLE	12	AZURY

MEPH100 - Pnömatik Hidrolik Tip Slip Rings

1) Connection Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1". Other sizes available upon request.

2) Connection Type NPT & BSPP threads standard. SAE, NPTF, and other thread options are available on a custom basis.

3) Plating and Coatings Black oxide plating is standard. Anodized, E-Nickel, Chrome, Nitride, Ceramic and other specialty platings are available as custom options.

4) Materials Carbon steel is the standard material for the GP Series, Stainless Steel is the standard material for the GPS Series. Aluminum, Brass, and other materials are available on a custom basis.

5) Slip Ring Options The MEPH Series unions are available with a number of electrical slip ring options for power, signal and data transfer. The assembly is available with an aluminum cover to protect the slip ring during use in demanding environments.

6) Media Types: Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.

If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
