MG038 - Contalı [ Sızdırmaz - Mühürlü ] Slip Rings

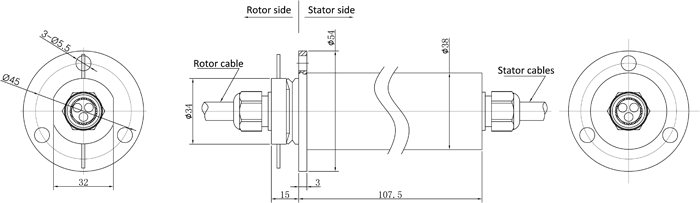

Gövde çapı 38mm, IP68 korumalı olup 300m su altında koruma sağlar.
MG038 serisi sabit kurulum için flanş ve 28 mm kompakt gövde çapı sağlar, uzun ömürlüdür, birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisi sunar. Standart, satışa hazır ürünler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır. 6X20A akımı maks. 600VAC/VDC ‘de iletebilir.
- If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
- Optional flange mounting.
- Specified the wire exit direction.
- Can combine more wires:1-120Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables
- Connectors
- Environmentally Sealed up to IP68@4Mpa
- Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- High Speed up to 20,000 rpm
- Thermocouples
- Shock, Vibration, and Temperature Qualified
- Pneumatic/Hydraulic Capability
- High temperature---up to 450 degree
- High Voltage & large Current(1000A)
- IP65,IP68 are avialable.
- Military Grade.
Build On Your Request/Special requirements
MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.
MOFLON supply build-on-request service base on MG038 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.
Now, Let's start - how to build on request?
Customized Order Instructions:
MG038
Build-On-Request Flowing:
