MJ1200 - Hollow [ Delikli ] Slip Rings
・MJ1200 döner aksamlar, 12 geçiş yolunu pnömatik/hidrolik olarak destekler.
・Ortam tipleri: Hava /Gaz, Kimyasal, DI / musluk suyu, yağ, su/Glikol.
・İçten delikli döner aksamlar
・Pnömatik, hidrolik soğutucu ve vakum uygulamaları için uygundur.
・Port Ebatları: M5,G1/8,G1/4
・Standart, satışa hazır,
・Teslim sürelerini ve maliyetlerini düşürecek şekilde stok ürünlerde müşteriye özel modifikasyonlar.

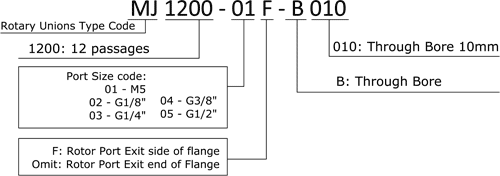

PARÇA# Açıklaması:
1) Connection Sizes 1/8", 1/4", 3/8", 1/2", 3/4", 1". Other sizes available upon request.
2) Connection Type NPT & BSPP threads standard. SAE, NPTF, and other thread options are available on a custom basis.
3) Plating and Coatings Black oxide plating is standard. Anodized, E-Nickel, Chrome, Nitride, Ceramic and other specialty platings are available as custom options.
4) Materials Carbon steel is the standard material for the GP Series, Stainless Steel is the standard material for the GPS Series. Aluminum, Brass, and other materials are available on a custom basis.
5) Slip Ring Options The MEPH Series unions are available with a number of electrical slip ring options for power, signal and data transfer. The assembly is available with an aluminum cover to protect the slip ring during use in demanding environments.
6) Media Types: Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
Typical Application
- Industrial machinery
- Filling equipment
- Exhibit / display equipment
- Medical equipment
- machining centerse
- rotary index tables
- Mechanical arm
- Surgery lamp
- heavy equipment turrets or cable reels
- Revolving door
- Packaging machine
- Coiling machine
- test equipment
- packaging machines
