MT020 - Küçük Delikli OD Slip Rings
İç çap 20mm, Dış çap: 45mm
MT020 serisi 20mm iç çap sunar, iç çap hidrolik veya pnömatik hatların yönlendirilmesi için veya hidrolik veya pnömatik şaft kurulumu içindir ve kompakt 45mm dış çapa sahiptir, uzu ömürlüdür, fiber fırça kontak teknolojisi birçok zorlu uygulamada en üst düzeyde performans için sağlanmıştır.
MT020 serisi standart, satışa hazır ürünlerdir, Basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır. Sinyal (5A) maks. 250VAC/VDC'de iletebilir.
| Specifications |
| Rings |
2~12(see table as below) |
Current |
5A,signal |
| Voltage |
250 VDC/VAC |
Max speed |
250RPM |
| Through bore size |
12.7mm(1/2") |
Overall diameter |
45mm |
| Housing Material |
Aluminium Alloy |
Torque |
0.05N.m;+0.03N.m/6rings |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<5mOhm |
Contact Resistance |
<2mOhm |
| Dielectric strength |
600VDC@50Hz |
Lead Wire |
UL Teflon® Awg22 |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
300mm(12") |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 70% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES
|
| MT02002 |
2 |
Signal,5A/ring |
30 |
| MT02004 |
4 |
Signal,5A/ring |
36 |
| MT02006 |
6 |
Signal,5A/ring |
42 |
| MT02012 |
12 |
Signal,5A/ring |
60 |
| |

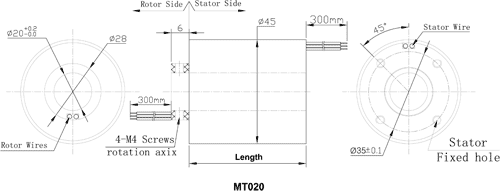

Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
- If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
- Optional flange mounting.
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- High temperature is optional.
- Military Grade.
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).
2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
Flange Mounting Instructions
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure
Build On Your Request/Special requirements
when we cann't find any one of standard part# to fit our application, what should we do?
Great! Moflon supply build-on-request service base on MT020 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.
Build-On-Request Flowing:
