Measurement range

±5°

±10°

±15°

±30°

±45°

±60°

±90°(Single-axis)

Accuracy (@25 ℃ )

±0.05°

±0.08°

±0.1°

Temperature drift @ -20~65℃

±0.03°/℃

±0.005°/℃

±0.009°/℃

Temperature drift（Option）
@ -20~65℃

±0.1°

±0.2°

Resolution

±0.003°

Offset repeatability

±0.02°

Offset

±0.02°

Cross-axis sensitivity

±0.3%FS

Measurement axis

1 or 2 axis,(only single-axis at ±90° range)

Digital output for SST250/SST260

RS232(optional:RS485,RS422)
Refresh Rate:5Hz(default)10Hz,20Hz(optional)
Format:19200 baud,8 data bits, 1 start bit, 1 stop bit,none parity,ASCII

CAN2.0:according to ISO11898-2 standard,5k~1MBit/s baud rate, support 127 nodes,
built in high speed photoelectric isolator

Voltage output for SST230/SST220

Voltage:0.5~4.5VDC
Output resistance:0.3Ω
Load resistance:<100Ω

Current output for SST210/SST220

Current:4~20mA
Output impedance:50MΩ
Load resistance:150~250MΩ

Response time

0.3s@t90

EMC

According to EN61000

Insulation resistance

100MΩ

MTBF

≥150000 h/times

Power supply

With voltage & digital output:9~36VDC, consumption≤20mA
With current output:16~36VDC, consumption≤40mA

Power supply reject ratio

>85dB

Operation temperature range

-40~85℃

Storage temperature range

-40~100℃

Protection

IP67

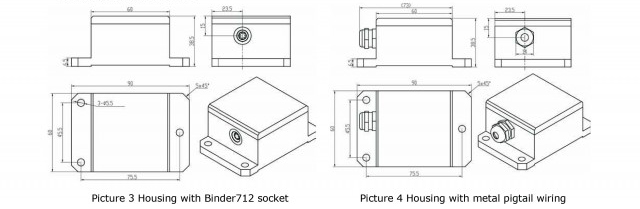

Housing

6061-T6 aluminum alloy

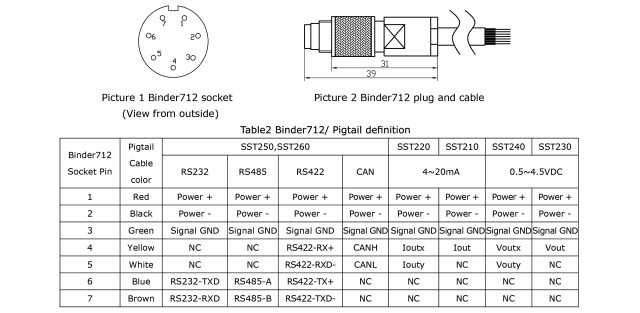

Connecting

Standard:Binder712 connector,optional: metal pigtail

Cable

7-wire shielded cable with tensile reinforcement, heavy duty up to 30Kg

Shock

100@11ms,three-axis, half-sine

Vibration

8grms,20~2000Hz

Weight

240(without connector and cable)
