SST400 Inclinometer

Vigor Technology MEMS Inclinometer / SST400 Inclinometer

Features

  • Continuous output or acknowledge output
  • Adjustable filter to absorb vibration
  • Available to modify with local gravity value
  • Mostly compatible to SST300's accessories and options (90 types)
  • Accuracy up to ±20''
  • Cross-axis sensitivity≤±0.2%FS
  • ±9"offset repeatability
  • Refer to about 50 industry & military standards
  • Military class product available


Applications

Factory automation, Precision instrument, Vessel, Engineering machinery, Civil engineering, Military project, Aerospace.

SST400 Inclinometer

Table1 Specifications

Measurement range
±5°
±10°
±15°
±30°
Accuracy(@25℃ )
±20″
Repeatability
±9″
Resolution
2″
Offset
±0.004°
Response time
0.3s
Offset temperature drift coefficient
≤0.0006°/ ℃ @ -20~65 ℃
Sensitivity temperature drift
coefficient
≤0.005%/ ℃ @ -20~65 ℃
Temperature sensor
Range:-50~125℃ ,Accuracy:±1℃
Measurement axis
1axis or 2 axis
Cross-axis sensitivity
±0.2%FS
Output type
RS232 (optional RS422, RS485), 0~5VDC,4~20mA
RS232 data format
115200 baud,8 data bits,1start bit,1stop bit, none parity,ASCII
Cold start warming time
60s
Refresh rate
5Hz(optional 10Hz or 20Hz)
Response time
0.3s
Power supply
9~36VDC
Current consumption
≤100mA
Power dissipation
Supply current≤50mA, power dissipation≤1.5W(25℃ &24VDC)
Output impedance
Internal resistance of voltage source:100Ω,sink/leakage current about 10mA
Internal resistance of current source: 50MΩ, load :0~625Ω
Power supply rejection ratio
> 85dB
Operation temperature range
-40~85℃
Storage temperature range
-60~100℃
EMC
According to EN 61000
Insulation resistance
100MΩ
MTBF
≥25000h/times
Shock
100g@11ms,three-axis,half-sine
Vibration
8grms, 20~2000Hz
Protection
IP65(optional IP67)
Housing
6061-T6 aluminum alloy
Cable
7-wire shielded cable with tensile reinforcement
Connecting
Binder712 connector
Weight ≤500g(without connector and cable)

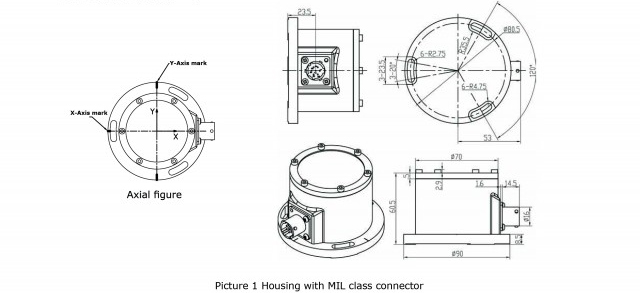

Dimensions

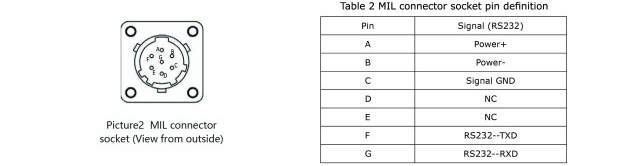

Wiring

Ordering
