MC - Kapsül Tip Slip Rings

Fiyat teklifi için lütfen tıklayınız

MC573

MC573 - Kapsül Tip Slip Rings
Dış Çap 22.00mm(0.87"), 57.3mm(2.26"), 36 kablo * 2A(sinyal)
MC573 slip ringler küçük ve kompakt yapıda 22mm dış çaplı 57.3mm uzunlukta, kapsül tipli, standart, satışa hazır slip ringler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır. Her bir iletken için 90° V-kanal iletken tasarımı kullanılır.

MC5739, MC573'un üst versiyonudur, daha yüksek performanslı daha uzun ömürlüdür, daha yüksek devir hızına sahiptir, daha az gürültü çıkartır.

MC573
PART # OD * L SIGNAL/2A 4A 8A 15A TOTAL WIRES DOWNLOAD
MC573 22mm*57.3mm 36 0 0 0 36 PDFCAD
Shared Specifications
Wires 36(see table as above) Current Signal(2A)
Voltage 240 VDC/VAC Max speed 150RPM
Overall diameter 22mm(0.87") Length 57.3mm(2.26")
Contact Material Precious Metal:gold-gold Contact Resistance <150mOhm(AWG28#,250mm)
Housing Material Plastics Torque 0.08N.m
Working life depends on working speed Electrical noise <10mΩ
Dielectric strength 600VDC@50Hz Lead Wire UL Teflon® Awg28
Insulation resistance 1000MΩ@500VDC Lead Lengths 250mm
Operating Temp. -40°C to 80°C Protection IP51
Mechanical vibratio MIL-SID-810E Humidity 10% to 90% RH
Materials Lead Free,RoHS compliant CE Certified YES

Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG28, 4A -> AWG22, 8A -> Awg16, 15A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.

TABLE 2:

  Max Speed Working life Torque Housing
Material		 Electrical noise①
@10Rpm
MC573 150RPM depends on working speed 0.08 N·m Plastics 10mΩ
MC5739 600RPM 1depends on working speed 0.03 N·m Metal 4mΩ

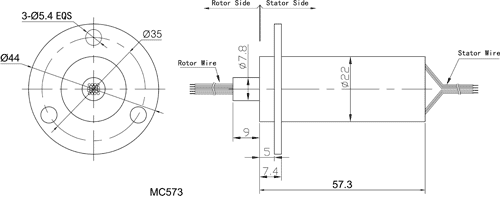

Standard drawings:

Lead wire Color codes
Rings# Color Code Rings# Color Code Rings# Color Code Rings# Color Code
1 BLK 10 WHT 19 WHT BLU 28 ORN
2 BRN 11 PINK 20 WHT PURPLE 29 YEL
3 RED 12 AZURY 21 WHT GRY 30 GRN
4 ORN 13 WHT BLK 22 CRY STAL 31 BLU
5 YEL 14 WHT BRN 23 BLK RED 32 PURPLE
6 GRN 15 WHT RED 24 WHT BRN 33 GRY
7 BLU 16 WHT ORG 25 BLK 34 WHT
8 PURPLE 17 WHT YEL 26 BRN 35 PINK
9 GRY 18 WHT GRN 27 RED 36 AZURY
MC573 - Kapsül Tip Slip Rings
  • If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!

  • MC5739 is the high-end version corresponding to MC573.
  • Optional flange mounting.
  • Specified connectors and Heat-shrink tube.
  • Longer lead lengths available.
  • High temperature is optional.
  • Military Grade.

Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure





Shaft Mounting Instructions(For Through bore style)

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.


Typical Application

  • CCTV Monitoring System.
  • Electrical test equipment.
  • Medical equipment.
  • Rotary table
  • Robotics
  • Laboratory equipmen
  • Manufacturing and process control equipment
