MFO200

MFO200 - Fiber Optik Slip Rings
MFO200 slip rings are standard, off-the-shelf. It could support 2 channel fiber optics(MM) transmitting on 360° rotating.The rugged body allows fiber pigtail, FC receptacles on either the rotor side or the stator side.features extremely low insertion loss and impressive return loss performance for both singlemode and multimode fibers.MFO200 are often used with electronic sliprings, call optical-electrical hybrid slipring, transmit power and high speed data.



MFO200
PART # WAVELENGTH CHANNEL INSERTION LOSS LEAD LENGTH CONNECTORS
MFO200 650nm~1310nm 2 channel MM <2dB @ each 1000mm FC
MFO200(2 channel FORJ) Specifications
Wavelength 650nm~1310nm Insertion loss <2dB each channel
Insertion loss ripple <+/-0.25 dB Return loss (SM/MM) >30 dB(RFC/RST)
Maximum speed 300 RPM Pressure compensation 1000 psi
Pulling strength. 10N Start up torque 0.9N/m
Estimated life cycle 300 million Optical power handling 23 dBm
Working temperature -40 to 85 °C Storage temperature -50 to 85 °C
Package style Pigtail or receptacles Housing materia Stainless steel
Fiber types Support only MM Connector FC
IP rating IP 68 Weight 350g
Lead length 1000mm

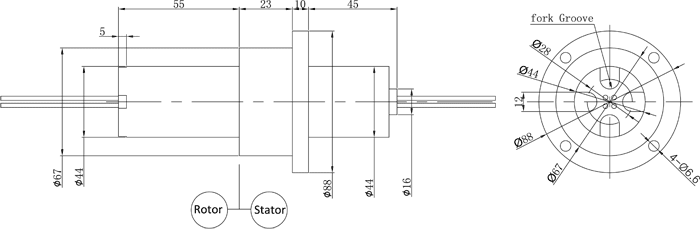

MFO200 - Fiber Optik Slip Rings

Typical Application

  • between in undersea robot and control ship.
  • between in radar antenna and on-board signal processing system.
  • with the chariot rotating tower car body console.
  • between in welding robot and console.
