MP220 - Düz [ Pancake ] Slip Rings
MP220 slip ring'ler, PCB pancake tasarımlı olup, kalınlık 22.00mm, delik ebatı 25.4mm(1") olup, standart yapıdadır.
Basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır.
PARÇA# Açıklaması:
MP220 - P0610 - S06
| PART # |
OD |
SIGNAL/2A |
10A |
20A |
TOTAL WIRES |
PART # |
OD |
SIGNAL/2A |
10A |
20A |
TOTAL WIRES |
| MP220-S02 |
92 |
2 |
0 |
0 |
2 |
MP220-P0210 |
92 |
0 |
2 |
0 |
2 |
| MP220-P0210-S02 |
108 |
2 |
2 |
0 |
4 |
MP220-P0410 |
108 |
0 |
4 |
0 |
4 |
| MP220-S06 |
124 |
6 |
0 |
0 |
6 |
MP220-P0610 |
124 |
0 |
6 |
0 |
6 |
| MP220-P0620 |
124 |
0 |
0 |
6 |
6 |
MP220-P0210-S04 |
124 |
4 |
2 |
0 |
6 |
| MP220-S12 |
172 |
12 |
0 |
0 |
12 |
MP220-P1210 |
172 |
0 |
12 |
0 |
12 |
| MP220-P1220 |
172 |
0 |
0 |
12 |
12 |
MP220-P0610-S06 |
172 |
6 |
6 |
0 |
12 |
| MP220-P0620-S06 |
172 |
6 |
0 |
6 |
12 |
MP220-S18 |
216 |
18 |
0 |
0 |
18 |
| MP220-P1810 |
216 |
0 |
18 |
0 |
18 |
MP220-P0610-S12 |
216 |
12 |
6 |
0 |
18 |
| MP220-P1210-S06 |
216 |
6 |
12 |
0 |
18 |
MP220-P0810-S10 |
204 |
10 |
8 |
0 |
18 |
| MP220-S24 |
268 |
24 |
0 |
0 |
24 |
MP220-P2410 |
268 |
0 |
24 |
0 |
24 |
| MP220-P1210-S12 |
268 |
12 |
12 |
0 |
24 |
MP220-P0610-S18 |
268 |
6 |
18 |
0 |
24 |
| MP220-S36 |
364 |
36 |
0 |
0 |
36 |
MP220-S48 |
460 |
48 |
0 |
0 |
48 |
| Shared Specifications |
| Rings |
2~36(see table as above) |
Current |
Signal(2A) or 10A |
| Voltage |
400 VDC/VAC |
Max speed |
250RPM |
| Through bore size |
25.4mm(1") |
thickness |
22mm(0.86") |
| Housing Material |
Aluminium Alloy |
Torque |
0.8N.m |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<20 milliohms |
Contact Resistance |
<20mOhm(AWG16#,300mm) |
| Dielectric strength |
1000VDC@50Hz |
Lead Wire |
UL Teflon® |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
250mm |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 90% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |
|
Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.
|
Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
- If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
- MP229 is the high-end version corresponding to MP220.
- MP221 is the low-cost version corresponding to MP220.
- Can combine more wires:1-72Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables
- Connectors
- Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- Thermocouples
- Shock, Vibration, and Temperature Qualified
- Pneumatic/Hydraulic Capability
- High temperature---up to 450 degree
- High Voltage & large Current(1000A)
- Military Grade.

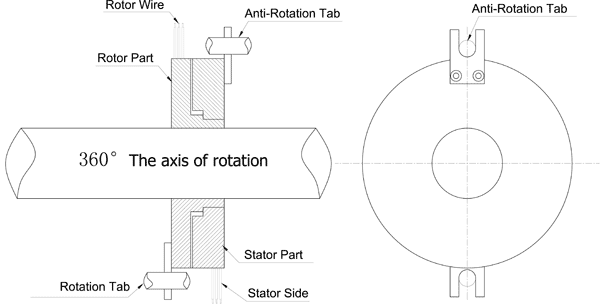

Shaft Mounting Instructions(For pancake style)
Build On Your Request/Special requirements
MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.
Now, Let's start - how to build on request?
Please see ordering information instructions as below:
MP220
Build-On-Request Flowing:
