MP270 - Düz [ Pancake ] Slip Rings
MP270 slip ring'ler, pancake tasarımlı olup, kalınlık 30.00mm, delik ebatı 70.00mm(2.57") olup, standart yapıdadır.
Basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır.
PARÇA# Açıklaması:
MP270 - P0610 - S06
| PART # |
OD |
SIGNAL/2A |
10A |
20A |
TOTAL WIRES |
PART # |
OD |
SIGNAL/2A |
10A |
20A |
TOTAL WIRES |
| MP270-S02 |
152 |
2 |
0 |
0 |
2 |
MP270-P0210 |
152 |
0 |
2 |
0 |
2 |
| MP270-P0210-S02 |
168 |
2 |
2 |
0 |
4 |
MP270-P0410 |
168 |
0 |
4 |
0 |
4 |
| MP270-S06 |
184 |
6 |
0 |
0 |
6 |
MP270-P0610 |
184 |
0 |
6 |
0 |
6 |
| MP270-P0620 |
184 |
0 |
0 |
6 |
6 |
MP270-P0210-S04 |
184 |
4 |
2 |
0 |
6 |
| MP270-S12 |
232 |
12 |
0 |
0 |
12 |
MP270-P1210 |
232 |
0 |
12 |
0 |
12 |
| MP270-P1220 |
232 |
0 |
0 |
12 |
12 |
MP270-P0610-S06 |
232 |
6 |
6 |
0 |
12 |
| MP270-P0620-S06 |
232 |
6 |
0 |
6 |
12 |
MP270-S18 |
280 |
18 |
0 |
0 |
18 |
| MP270-P1810 |
280 |
0 |
18 |
0 |
18 |
MP270-P0610-S12 |
280 |
12 |
6 |
0 |
18 |
| MP270-P1210-S06 |
280 |
6 |
12 |
0 |
18 |
MP270-P0810-S10 |
280 |
10 |
8 |
0 |
18 |
| MP270-S24 |
268 |
24 |
0 |
0 |
24 |
MP270-P2410 |
268 |
0 |
24 |
0 |
24 |
| MP270-P1210-S12 |
328 |
12 |
12 |
0 |
24 |
MP270-P0610-S18 |
328 |
6 |
18 |
0 |
24 |
| MP270-S36 |
424 |
36 |
0 |
0 |
36 |
MP270-S48 |
520 |
48 |
0 |
0 |
48 |
| Shared Specifications |
| Rings |
2~36(see table as above) |
Current |
Signal(2A) or 10A |
| Voltage |
400 VDC/VAC |
Max speed |
250RPM |
| Through bore size |
70mm(2.76") |
thickness |
30mm(1.18") |
| Housing Material |
Aluminium Alloy |
Torque |
0.8N.m |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<20 milliohms |
Contact Resistance |
<20mOhm(AWG16#,300mm) |
| Dielectric strength |
1000VDC@50Hz |
Lead Wire |
UL Teflon® |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
250mm |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 90% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |
|
Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.
|

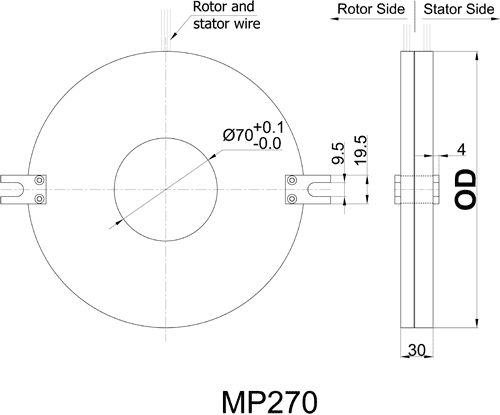

Standard drawings:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
