Moflon MT025 - Delikli Slip Ring
İç çap : 25.4mm(1") Dış Çap : 86mm
MT025 serisi standart, satışa hazır ürünler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar, statorda ve rotorda kullanılır. Hidrolik veya pnömatik hatların yönlendirilmesi, hidrolik veya pnömatik döner şaft kurulumu için 25.4mm(1") iç çap ve kompakt 86mm dış çap sağlanmıştır. Uzun ömürlü ve birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisine sahiptir.
Standart seri PARÇA# Açıklaması:
MT02518 - 06 12
| Specifications |
| Rings |
2~72(see table as below) |
Current |
Signal(2A) or 10A |
| Voltage |
600 VDC/VAC |
Max speed |
1000RPM |
| Through bore size |
25.4mm(1") |
Overall diameter |
86mm(3.38") |
| Housing Material |
Aluminium Alloy |
Torque |
0.05N.m;+0.03N.m/6rings |
| Working life |
depends on working speed |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<5 mOhm |
Contact Resistance |
<2mOhm |
| Dielectric strength |
1000VDC@50Hz |
Lead Wire |
UL Teflon® Awg22,Awg16 |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
300mm(12") |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP51 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 85% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES
|
* Please note: 10A rings parallel can be used as multiple 10A current.
* For Example: 2 rings parallel could be used as 1 wires 20A
| Total Rings=2, Length=31.6mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02502-0200 |
2X10A |
MT02502-0002 |
2XSignal(2A) |
| Total Rings=3, Length=35mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02503-0300 |
3X10A |
MT02503-0003 |
3XSignal(2A) |
| MT02503-0102 |
1X10A+2Xsignal(2A) |
MT02503-0201 |
2X10A+1Xsignal(2A) |
| Total Rings=6, Length=45mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02506-0600 |
6X10A |
MT02506-0006 |
6Xsignal(2A) |
| MT02506-0204 |
2X10A + 4Xsignal(2A) |
MT02506-0402 |
4X10A + 2Xsignal(2A) |
| Total Rings=12, Length=65.5mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02512-1200 |
12X10A |
MT02512-0012 |
12Xsignal(2A) |
| MT02512-0210 |
2X10A + 10Xsignal(2A) |
MT02512-0408 |
4X10A + 8Xsignal(2A) |
| MT02512-0606 |
6X10A + 6Xsignal(2A) |
MT02512-0804 |
8X10A + 4Xsignal(2A) |
| MT02512-1002 |
10X10A + 2Xsignal(2A) |
|
| Total Rings=18, Length=86mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02518-1800 |
18X10A |
MT02518-0018 |
18Xsignal(2A) |
| MT02518-0216 |
2X10A + 16Xsignal(2A) |
MT02518-0414 |
4X10A + 14Xsignal(2A) |
| MT02518-0612 |
6X10A + 12Xsignal(2A) |
MT02518-0810 |
8X10A + 10Xsignal(2A) |
| MT02518-1008 |
10X10A + 8Xsignal(2A) |
MT02518-1206 |
12X10A + 6Xsignal(2A) |
| MT02518-1404 |
14X10A + 4Xsignal(2A) |
MT02518-1602 |
16X10A + 2Xsignal(2A) |
| Total Rings=24, Length=106.4mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02524-2400 |
24X10A |
MT02524-0024 |
24Xsignal(2A) |
| MT02524-0618 |
6X10A + 18Xsignal(2A) |
MT02524-1212 |
12X10A + 12Xsignal(2A) |
| MT02524-1806 |
18X10A + 6Xsignal(2A) |
|
| Total Rings=30, Length=126mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02530-3000 |
30X10A |
MT02530-0030 |
30Xsignal(2A) |
| MT02530-0624 |
6X10A + 24Xsignal(2A) |
MT02530-1218 |
12X10A + 18Xsignal(2A) |
| MT02530-1812 |
18X10A + 12Xsignal(2A) |
MT02530-2406 |
24X10A + 6Xsignal(2A) |
| Total Rings=36, Length=147mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02536-3600 |
36X10A |
MT02536-0036 |
36Xsignal(2A) |
| MT02536-0630 |
6X10A + 30Xsignal(2A) |
MT02536-1224 |
12X10A + 24Xsignal(2A) |
| MT02536-1818 |
18X10A + 18Xsignal(2A) |
MT02536-2412 |
24X10A + 12Xsignal(2A) |
| MT02536-3006 |
30X10A + 6Xsignal(2A) |
|
| Total Rings=42, Length=167.6mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02542-4200 |
42X10A |
MT02542-0042 |
42Xsignal(2A) |
| MT02542-0636 |
6X10A + 36Xsignal(2A) |
MT02542-1230 |
12X10A + 30Xsignal(2A) |
| MT02542-1824 |
18X10A + 24Xsignal(2A) |
MT02542-2418 |
24X10A + 18Xsignal(2A) |
| MT02542-3012 |
30X10A + 12Xsignal(2A) |
MT02542-3606 |
36X10A + 6Xsignal(2A) |
| Total Rings=48, Length=188mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02548-4800 |
48X10A |
MT02548-0048 |
48Xsignal(2A) |
| MT02548-0642 |
6X10A + 42Xsignal(2A) |
MT02548-1236 |
12X10A + 36Xsignal(2A) |
| MT02548-1830 |
18X10A + 30Xsignal(2A) |
MT02548-2424 |
24X10A + 24Xsignal(2A) |
| MT02548-3018 |
30X10A + 18Xsignal(2A) |
MT02548-3612 |
36X10A + 12Xsignal(2A) |
| MT02548-4206 |
42X10A + 6Xsignal(2A) |
|
| Total Rings=56, Length=215mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02556-5600 |
56X10A + 0Xsignal(2A) |
MT02556-0056 |
0X10A + 56Xsignal(2A) |
| MT02556-0650 |
6X10A + 50Xsignal(2A) |
MT02556-1244 |
12X10A + 44Xsignal(2A) |
| MT02556-1838 |
18X10A + 38Xsignal(2A) |
MT02556-2432 |
24X10A + 32Xsignal(2A) |
| MT02556-3620 |
36X10A + 20Xsignal(2A) |
MT02556-4808 |
48X10A + 8Xsignal(2A) |
0X10A + 72Xsignal(2A)
| Total Rings=72, Length=269.5mm |
| Parts# |
Circuits Info |
Parts# |
Circuits Info |
| MT02572-7200 |
72X10A + 0Xsignal(2A) |
MT02572-0072 |
| MT02572-1260 |
12X10A + 60Xsignal(2A) |
MT02572-2448 |
24X10A + 48Xsignal(2A) |
| MT02572-3042 |
30X10A + 42Xsignal(2A) |
MT02572-3636 |
36X10A + 36Xsignal(2A) |
| MT02572-4824 |
48X10A + 24Xsignal(2A) |
MT02572-6012 |
60X10A + 12Xsignal(2A) |
| MT025(Parts# of Large Current) |
| Parts# |
Circuits Info |
Length |
Parts# |
Circuits Info |
Length |
| MT025-P0330-S02 |
3X20A+2Xsignal(2A) |
45mm |
MT025-P0350 |
3X50A |
45mm |
| MT025-P0280 |
2X80A |
45mm |
MT025-P0430 |
4X30A |
45mm |
| MT025-P0350-S06 |
3X50A+6Xsignal(2A) |
65.5mm |
MT025-P0430-S06 |
4X30A + 6Xsignal(2A) |
65.5mm |
| MT025-P03100-S02 |
3X100A+2Xsignal(2A) |
65.5mm |
MT025-P0460-S02 |
4X60A + 2Xsignal(2A) |
65.5mm |
| MT025-P0630-S04 |
6X30A+4Xsignal(2A) |
65.5mm |
MT025-P0650-S02 |
6X50A + 2Xsignal(2A) |
65.5mm |
| MT025-P03150 |
3X150A |
86mm |
MT025-P04100 |
4X100A |
86mm |
| MT025-P0380-S12 |
3X80A+12Xsignal(2A) |
86mm |
MT025-P0480-S10 |
4X80A+10Xsignal(2A) |
86mm |
| MT025-P0380-S18 |
3X80A+18Xsignal(2A) |
106.4mm |
MT025-P0480-S16 |
4X80A+16Xsignal(2A) |
106.4mm |
| MT025-P0680-S12 |
6X80A+12Xsignal(2A) |
106.4mm |
MT025-P0880-S10 |
8X80A+10Xsignal(2A) |
106.4mm
|

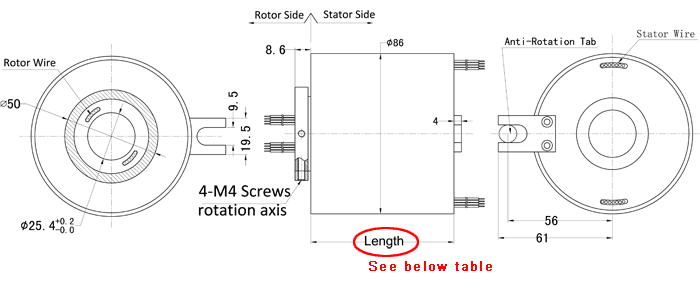

Standard drawings:

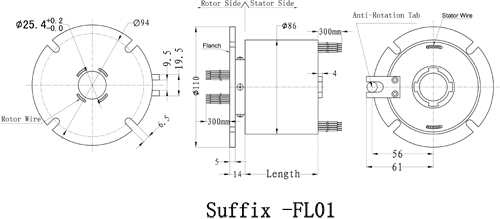

Optional FL01 Rotor Flanges mounting:

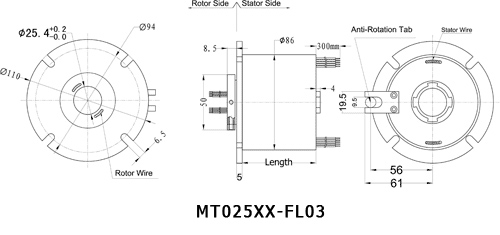

Optional FL02 Stator Flanges mounting:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
- If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
- Optional flange mounting.
- Specified the wire exit direction.
- Can combine more wires:1-120Ring
- Specified connectors and Heat-shrink tube.
- Longer lead lengths available.
- Shielded cables
- Connectors
- Environmentally Sealed up to IP68@4Mpa
- Frequencies up to 500 MHz
- High-speed data transmission for fast Ethernet and EtherCat
- Signal, Coax, and Power combinations
- High Speed up to 20,000 rpm
- Thermocouples
- Shock, Vibration, and Temperature Qualified
- Pneumatic/Hydraulic Capability
- High temperature---up to 450 degree
- High Voltage & large Current(1000A)
- IP65,IP68 are avialable.
- Military Grade.
1.Main shaft mouted units:
A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).
2.Housing mouted units:
A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
Flange Mounting Instructions
1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.
CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure
Build On Your Request/Special requirements
MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.
MOFLON supply build-on-request service base on MT025 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.
