Moflon MT060 - Delikli Slip Ring
İç çap : 60mm(2.36") Dış Çap : 130mm(5.12")
MT060 serisi standart, satışa hazır ürünler olup, basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar, statorda ve rotorda kullanılır. Hidrolik veya pnömatik hatların yönlendirilmesi, hidrolik veya pnömatik döner şaft kurulumu için 60mm(2.36") iç çap ve kompakt 130mm dış çap sağlanmıştır. Uzun ömürlü ve birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisine sahiptir.

Standart seri PARÇA# Açıklaması:

MT06018 -  06   12





MT06002(Total Rings=2, Length=35.4mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06002-0200	2	0	MT06002-0002	0	2

MT06003(Total Rings=3, Length=39.2mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06003-0300	3	0	MT06003-0003	0	3
MT06003-0102	1	2	MT06003-0201	2	1

MT06006(Total Rings=6, Length=50mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06006-0600	6	0	MT06006-0006	0	6
MT06006-0204	2	4	MT06006-0402	4	2

MT06012(Total Rings=12, Length=71.5mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06012-1200	12	0	MT06012-0012	0	12
MT06012-0210	2	10	MT06012-0408	4	8
MT06012-0606	6	6	MT06012-0804	8	4
MT06012-1002	10	2

MT06018(Total Rings=18, Length=93mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06018-1800	18	0	MT06018-0018	0	18
MT06018-0216	2	16	MT06018-0414	4	14
MT06018-0612	6	12	MT06018-0810	8	10
MT06018-1008	10	8	MT06018-1206	12	6
MT06018-1404	14	4	MT06018-1602	16	2

MT06024(Total Rings=24, Length=114.8mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06024-2400	24	0	MT06024-0024	0	24
MT06024-0618	6	18	MT06024-1212	12	12
MT06024-1806	18	6

MT06030(Total Rings=30, Length=136.4mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06030-3000	30	0	MT06030-0030	0	30
MT06030-0624	6	24	MT06030-1218	12	18
MT06030-1812	18	12	MT06030-2406	24	6

MT06036(Total Rings=36, Length=158mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06036-3600	36	0	MT06036-0036	0	36
MT06036-0630	6	30	MT06036-1224	12	24
MT06036-1818	18	18	MT06036-2412	24	12
MT06036-3006	30	6

MT06042(Total Rings=42, Length=179.6mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06042-4200	42	0	MT06042-0042	0	42
MT06042-0636	6	36	MT06042-1230	12	30
MT06042-1824	18	24	MT06042-2418	24	18
MT06042-3012	30	12	MT06042-3606	36	6

MT06048(Total Rings=48, Length=200mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06048-4800	48	0	MT06048-0048	0	48
MT06048-0642	6	42	MT06048-1236	12	36
MT06048-1830	18	30	MT06048-2424	24	24
MT06048-3018	30	18	MT06048-3612	36	12
MT06048-4206	42	6

MT06056(Total Rings=56, Length=230mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06056-5600	56	0	MT06056-0056	0	56
MT06056-0650	6	50	MT06056-1244	12	44
MT06056-1838	18	38	MT06056-2432	24	32
MT06056-3620	36	20	MT06056-4808	48	8

MT06072(Total Rings=72, Length=287.5mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06072-7200	72	0	MT06072-0072	0	72
MT06072-1260	12	60	MT06072-2448	24	48
MT06072-3042	30	42	MT06072-3636	36	36
MT06072-4824	48	24	MT06072-6012	60	12

MT06096(Total Rings=96, Length=374mm)
Parts#	Power 10A(circuits)	signal/2A(circuits)	Parts#	Power 10A(circuits)	signal/2A(circuits)
MT06096-9600	96	0	MT06096-0096	0	96
MT06096-1284	12	84	MT06096-2472	24	72
MT06096-3660	36	60	MT06096-4848	48	48
MT06096-6036	60	36	MT06096-7224	72	24

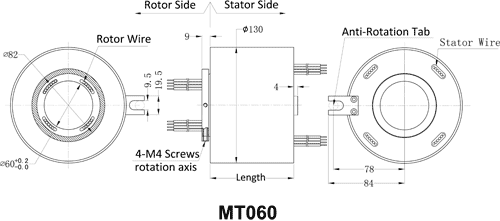

Standard drawings:

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

• If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!



• Optional flange mounting.
• Specified the wire exit direction.
• Can combine more wires:1-120Ring
• Specified connectors and Heat-shrink tube.
• Longer lead lengths available.
• Shielded cables
• Connectors
• Environmentally Sealed up to IP68@4Mpa
• Frequencies up to 500 MHz
• High-speed data transmission for fast Ethernet and EtherCat
• Signal, Coax, and Power combinations
• High Speed up to 20,000 rpm
• Thermocouples
• Shock, Vibration, and Temperature Qualified
• Pneumatic/Hydraulic Capability
• High temperature---up to 450 degree
• High Voltage & large Current(1000A)
• IP65,IP68 are avialable.
• Military Grade.

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.


Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure





Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

MOFLON supply build-on-request service base on MT060 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.

Now, Let's start - how to build on request?
Customized Order Instructions:


•

  Build-On-Request Flowing:
