MW5360 - Yüksek Akım Slip Rings
3 kanallı * 60A - Delik Ölçüleri 50.8mm(2")
MW5360 slip ring'ler küçük kompakt ve 3 kanallı * 60A - Delik Ölçüleri 50mm(1.97") ve Dış Çap 120mm özellikte olup, standart, satışa hazır durumdadırlar.
Basitleştirilmiş elektrik bağlantıları için renk kodlu ana kablolar statorda ve rotorda kullanılır.

Specifications
Wires	3	Current	60A
Voltage	600 VDC/VAC	Max speed	250RPM
Overall diameter	120mm	Length	100mm
Contact Material	Precious Metal:gold-gold	Contact Resistance	<100mOhm(AWG16#,250mm)
Housing Material	AL Alloy	Torque	0.5N.m
Working life	depends on working speed	Electrical noise	<10mΩ
Dielectric strength	1000VDC@50Hz	Lead Wire	UL Teflon® 14Awg,3 parallel
Insulation resistance	1000MΩ@600VDC	Lead Lengths	250mm
Dielectric strength	1000VDC@50Hz	Lead Wire	UL Teflon® 14Awg,3 parallel
Insulation resistance	1000MΩ@600VDC	Lead Lengths	250mm
Operating Temp.	-40°C to 80°C	Protection	IP51
Mechanical vibratio	MIL-SID-810E	Humidity	10% to 90% RH
Materials	Lead Free,RoHS compliant	CE Certified	YES
Notes: 1)The operational life of the unit is dependent upon rotational speed, environment and temperature. 2)Lead Wire size: 2A/signal -> AWG22, 10A -> AWG16, 20A -> Awg14, colored code. 3)Electrical noise is dependent upon the rotating speed and current,voltage.

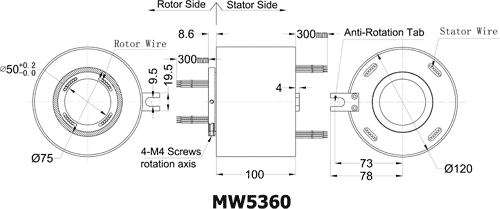

Standard drawings:

Lead wire Color codes
Rings#	Color Code
1	RED
2	BLK
3	Yellow

MW5360 - Yüksek Akım Slip Rings

If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!
Optional flange mounting.
Specified connectors and Heat-shrink tube.
Longer lead lengths available.
High temperature is optional.
Military Grade.

Flange Mounting Instructions

1. Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.

2. Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.

3. Position a screw or dowel (NOT SUPPLIED) in the anti-rotation tab to the dimension as shown.

CAUTION: Because of possible geometric mismatching between the customer��s application and the slip ring, 'hard mounting' of both ends of the slip ring (i.e., securing the rotor and stator such that there is NO floating during operation) is not recommended and may cause premature failure

Shaft Mounting Instructions(For Through bore style)

1.Main shaft mouted units:

A.Position the slip ring in the desired location and tighten both set screws to the shaft.Maximum torque 25Ib-in(DO NOT OVER TORQUE)
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.Do not constrain wiring such that wire flexing occurs.Doing so will ultimately cause failure(breakage of the wiring).

2.Housing mouted units:

A.Anti-Rotation tap used for connecting the stator of slip ring with the stationary member of euipment
B.Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.
