MZ060 - Otomasyon Slip Rings
Gövde çapı 60mm, Rotor Flanş Bağlama
MZ060 serisi rotor kurulumu için flanş, normal kurulum için şaft ucu sağlar, 60 mm lik kompakt gövde çapı, uzun kullanım süresi, birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisi sunar. Talep üzerine iç kısımda koruma kablolarını destekleyebilir, ve içteki koruma kabloları enkoder sinyali ve servo motor kontrol sinyali için özeldir.
MZ06018 - 06 12
| Specifications |
| Rings |
1~24(see table as below) |
Current |
Signal(2A),10A/Ring |
| Voltage |
600 VDC/VAC |
Max speed |
1000RPM |
| Housing Material |
Aluminium Alloy |
Torque |
0.1N.m for 6rings,+0.03N.m/6rings |
| Working life |
>120million revolutions |
Contact material |
Precious Metal:Gold-Gold |
| Electrical noise |
<5mOhm |
Contact Resistance |
<3mOhm |
| Dielectric strength |
600VDC@50Hz |
Lead Wire |
UL@Teflon/Shielding wires |
| Insulation resistance |
1000MΩ@600VDC |
Lead Lengths |
300mm(12") |
| Operating Temp. |
-40°C to 80°C |
Protection |
IP54 |
| Mechanical vibratio |
MIL-SID-810E |
Humidity |
10% to 85% RH |
| Materials |
Lead Free,RoHS compliant |
CE Certified |
YES |
| MZ06006(Total Rings=6, Length=46mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MZ06006-0600 |
6 |
0 |
MZ06006-0006 |
0 |
6 |
| MZ06006-0204 |
2 |
4 |
MZ06006-0402 |
4 |
2 |
| MZ06012(Total Rings=12, Length=62.8mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MZ06012-1200 |
12 |
0 |
MZ06012-0012 |
0 |
12 |
| MZ06012-0210 |
2 |
10 |
MZ06012-0408 |
4 |
8 |
| MZ06012-0606 |
6 |
6 |
MZ06012-0804 |
8 |
4 |
| MZ06012-1002 |
10 |
2 |
|
|
|
| MZ06018(Total Rings=18, Length=79.5mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MZ06018-1800 |
18 |
0 |
MZ06018-0018 |
0 |
18 |
| MZ06018-0216 |
2 |
16 |
MZ06018-0414 |
4 |
14 |
| MZ06018-0612 |
6 |
12 |
MZ06018-0810 |
8 |
10 |
| MZ06018-1008 |
10 |
8 |
MZ06018-1206 |
12 |
6 |
| MZ06018-1404 |
14 |
4 |
MZ06018-1602 |
16 |
2 |
| MZ06024(Total Rings=24, Length=96.4mm) |
| Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
Parts# |
Power 10A(circuits) |
signal/2A(circuits) |
| MZ06024-2400 |
24 |
0 |
MZ06024-0024 |
0 |
24 |
| MZ06024-0618 |
6 |
18 |
MZ06024-1212 |
12 |
12 |
| MZ06024-1806 |
18 |
6 |
|
|
|

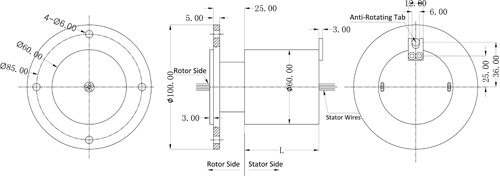

Standard drawings:

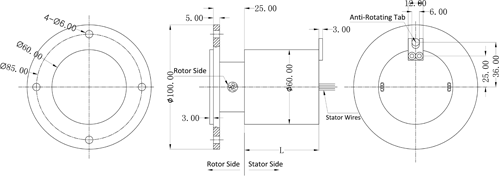

Optional rotor wires exit:
12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.
| Lead wire Color codes |
| Rings# |
Color Code |
Rings# |
Color Code |
Rings# |
Color Code |
| 1 |
BLK |
5 |
YEL |
9 |
GRY |
| 2 |
BRN |
6 |
GRN |
10 |
WHT |
| 3 |
RED |
7 |
BLU |
11 |
PINK |
| 4 |
ORN |
8 |
PURPLE |
12 |
AZURY
|
