MZ090

MZ090 - Otomasyon Slip Rings
Gövde çapı 90mm, Rotor Flanş Bağlama
MZ090 serisi rotor kurulumu için flanş, normal kurulum için şaft ucu sağlar, 90 mm lik kompakt gövde çapı, uzun kullanım süresi, birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisi sunar. Talep üzerine iç kısımda koruma kablolarını destekleyebilir, ve içteki koruma kabloları enkoder sinyali ve servo motor kontrol sinyali için özeldir.

MZ09018 -  06   12

MZ090
Specifications
Rings 1~72(see table as below) Current Signal(2A),10A/Ring
Voltage 600 VDC/VAC Max speed 1000RPM
Housing Material Aluminium Alloy Torque 0.1N.m for 6rings,+0.03N.m/6rings
Working life >120million revolutions Contact material Precious Metal:Gold-Gold
Electrical noise <5mOhm Contact Resistance <3mOhm
Dielectric strength 1000VDC@50Hz Lead Wire UL@Teflon/Shielding wires
Insulation resistance 1000MΩ@600VDC Lead Lengths 300mm(12")
Operating Temp. -40°C to 80°C Protection IP54
Mechanical vibratio MIL-SID-810E Humidity 10% to 85% RH
Materials Lead Free,RoHS compliant CE Certified YES
MZ09006(Total Rings=6, Length=53mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09006-0600 6 0 MZ09006-0006 0 6
MZ09006-0204 2 4 MZ09006-0402 4 2
MZ09012(Total Rings=12, Length=73.5mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09012-1200 12 0 MZ09012-0012 0 12
MZ09012-0210 2 10 MZ09012-0408 4 8
MZ09012-0606 6 6 MZ09012-0804 8 4
MZ09012-1002 10 2
MZ09018(Total Rings=18, Length=94mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09018-1800 18 0 MZ09018-0018 0 18
MZ09018-0216 2 16 MZ09018-0414 4 14
MZ09018-0612 6 12 MZ09018-0810 8 10
MZ09018-1008 10 8 MZ09018-1206 12 6
MZ09018-1404 14 4 MZ09018-1602 16 2
MZ09024(Total Rings=24, Length=114.4mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09024-2400 24 0 MZ09024-0024 0 24
MZ09024-0618 6 18 MZ09024-1212 12 12
MZ09024-1806 18 6
MZ09030(Total Rings=30, Length=134mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09030-3000 30 0 MZ09030-0030 0 30
MZ09030-0624 6 24 MZ09030-1218 12 18
MZ09030-1812 18 12 MZ09030-2406 24 6
MZ09036(Total Rings=36, Length=155mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09036-3600 36 0 MZ09036-0036 0 36
MZ09036-0630 6 30 MZ09036-1224 12 24
MZ09036-1818 18 18 MZ09036-2412 24 12
MZ09036-3006 30 6
MZ09042(Total Rings=42, Length=173.6mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09042-4200 42 0 MZ09042-0042 0 42
MZ09042-0636 6 36 MZ09042-1230 12 30
MZ09042-1824 18 24 MZ09042-2418 24 18
MZ09042-3012 30 12 MZ09042-3606 36 6
MZ09048(Total Rings=48, Length=196mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09048-4800 48 0 MZ09048-0048 0 48
MZ09048-0642 6 42 MZ09048-1236 12 36
MZ09048-1830 18 30 MZ09048-2424 24 24
MZ09048-3018 30 18 MZ09048-3612 36 12
MZ09048-4206 42 6
MZ09056(Total Rings=56, Length=223mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09056-5600 56 0 MZ09056-0056 0 56
MZ09056-0650 6 50 MZ09056-1244 12 44
MZ09056-1838 18 38 MZ09056-2432 24 32
MZ09056-3620 36 20 MZ09056-4808 48 8
MZ09072(Total Rings=72, Length=277.5mm)
Parts# Power 10A(circuits) signal/2A(circuits) Parts# Power 10A(circuits) signal/2A(circuits)
MZ09072-7200 72 0 MZ09072-0072 0 72
MZ09072-1260 12 60 MZ09072-2448 24 48
MZ09072-3042 30 42 MZ09072-3636 36 36
MZ09072-4824 48 24 MZ09072-6012 60 12

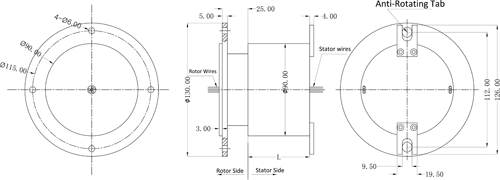

Standard drawings:

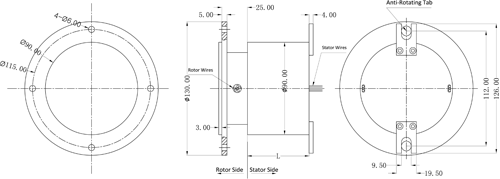

Optional rotor wires exit:

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

Lead wire Color codes
Rings# Color Code Rings# Color Code Rings# Color Code
1 BLK 5 YEL 9 GRY
2 BRN 6 GRN 10 WHT
3 RED 7 BLU 11 PINK
4 ORN 8 PURPLE 12 AZURY

  • If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!

  • Optional flange mounting.
  • Specified the wire exit direction.
  • Can combine more wires:1-120Ring
  • Specified connectors and Heat-shrink tube.
  • Longer lead lengths available.
  • Shielded cables
  • Connectors
  • Environmentally Sealed up to IP68@4Mpa
  • Frequencies up to 500 MHz
  • High-speed data transmission for fast Ethernet and EtherCat
  • Signal, Coax, and Power combinations
  • High Speed up to 20,000 rpm
  • Thermocouples
  • Shock, Vibration, and Temperature Qualified
  • Pneumatic/Hydraulic Capability
  • High temperature---up to 450 degree
  • High Voltage & large Current(1000A)
  • IP65,IP68 are avialable.
  • Military Grade.





Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

MOFLON supply build-on-request service base on MZ090 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.

Now, Let's start - how to build on request?
Customized Order Instructions:


MZ090
  • Build-On-Request Flowing:
