MZ120 - Otomasyon Slip Rings
Gövde çapı 120mm, Rotor Flanş Bağlama
MZ120 serisi rotor kurulumu için flanş, normal kurulum için şaft ucu sağlar, 90 mm lik kompakt gövde çapı, uzun kullanım süresi, birçok zorlu uygulamada en üst düzey performans için fiber fırça kontak teknolojisi sunar. Talep üzerine iç kısımda koruma kablolarını destekleyebilir, ve içteki koruma kabloları enkoder sinyali ve servo motor kontrol sinyali için özeldir.

MZ12018 -  06   12

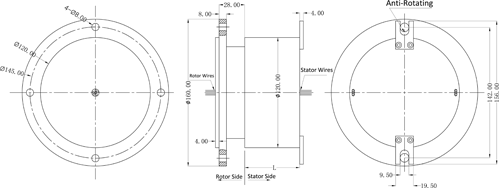

Standard drawings:

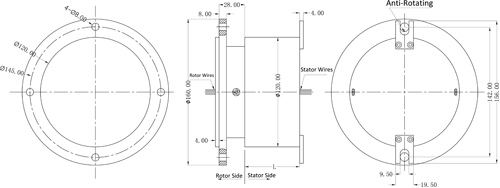

Optional rotor wires exit:

12 wires for one group color. from 13 ... 24, repeat the same color as 1 ... 12,indicated with number code pipe.

• If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Moflon slip rings are included in this catalog!

• Optional flange mounting.
• Specified the wire exit direction.
• Can combine more wires:1-120Ring
• Specified connectors and Heat-shrink tube.
• Longer lead lengths available.
• Shielded cables
• Connectors
• Environmentally Sealed up to IP68@4Mpa
• Frequencies up to 500 MHz
• High-speed data transmission for fast Ethernet and EtherCat
• Signal, Coax, and Power combinations
• High Speed up to 20,000 rpm
• Thermocouples
• Shock, Vibration, and Temperature Qualified
• Pneumatic/Hydraulic Capability
• High temperature---up to 450 degree
• High Voltage & large Current(1000A)
• IP65,IP68 are avialable.
• Military Grade.
•

Build On Your Request/Special requirements

MOFLON specialize in customized solutions, Now our models have over 12000, and over 80% model are customized on customer request and base on technology and full experience, our slip ring solution including traditionary carbon brush, gold wire contact, gold fiber brush contact, no contact transmit, each solution application depend on the customer real application request with economically, high quality and reliability.

MOFLON supply build-on-request service base on MZ120 series, the delivery time of build-on-request is 2 weeks,and price is only 10%~30% more than the standard version.

Now, Let's start - how to build on request?
Customized Order Instructions:


Build-On-Request Flowing:
